(55.036.060) - VAR - 743970, 759021 - HYDRAULIC, ELECTRONIC CONTROL UNIT, JOYSTICK

Запчасти Case IH FARMALL 110CL (55.036.060) - VAR - 743970, 759021 - HYDRAULIC, ELECTRONIC CONTROL UNIT, JOYSTICK (55) - ELECTRICAL SYSTEMS

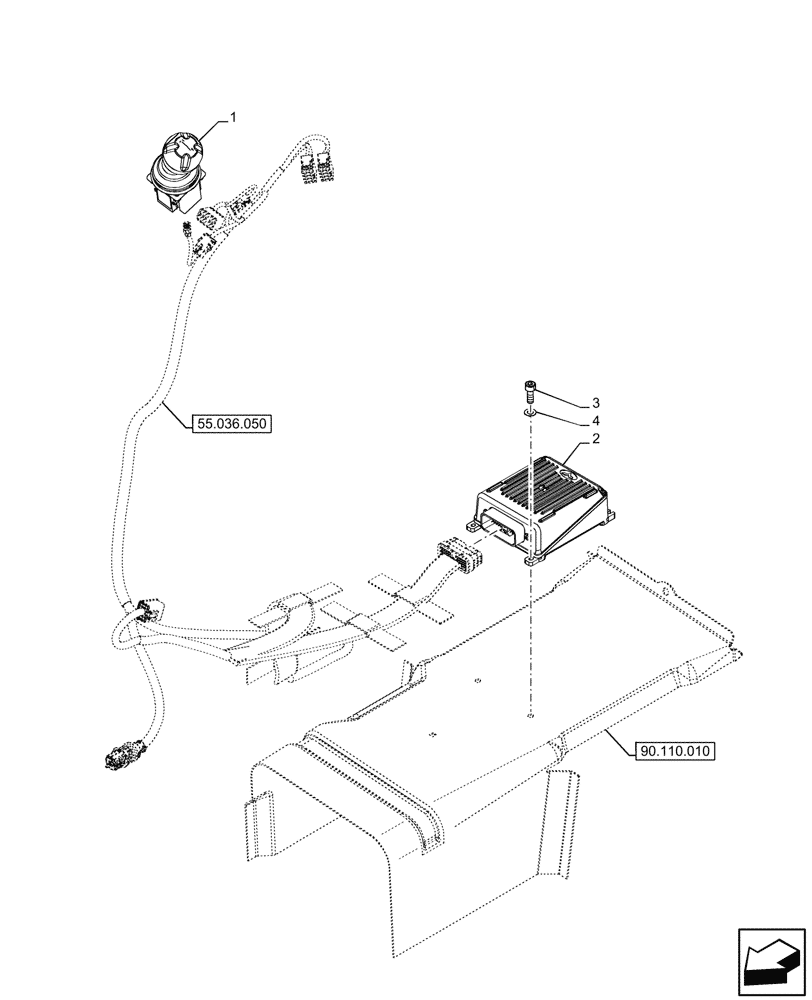

Схема запчастей Case IH FARMALL 110CL - (55.036.060) - VAR - 743970, 759021 - HYDRAULIC, ELECTRONIC CONTROL UNIT, JOYSTICK (55) - ELECTRICAL SYSTEMS
90.110.010
4
2
3
1
55.036.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47925240

JOYSTICK

Medium Duty 2 Axis

1шт.

2

48016038

ECU

1шт.

3

14304627

HEX SOC SCREW,M5 x 14mm, Cl 8.8, Full Thd

2шт.

4

13579121

WASHER,5.15mm ID x 10mm OD x 0.5mm Thk

2шт.
