Запчасти Case IH FARMALL 110CL (55.035.140) - VAR - 759025 - REMOTE CONTROL VALVE, DIVERTER, CAB (55) - ELECTRICAL SYSTEMS

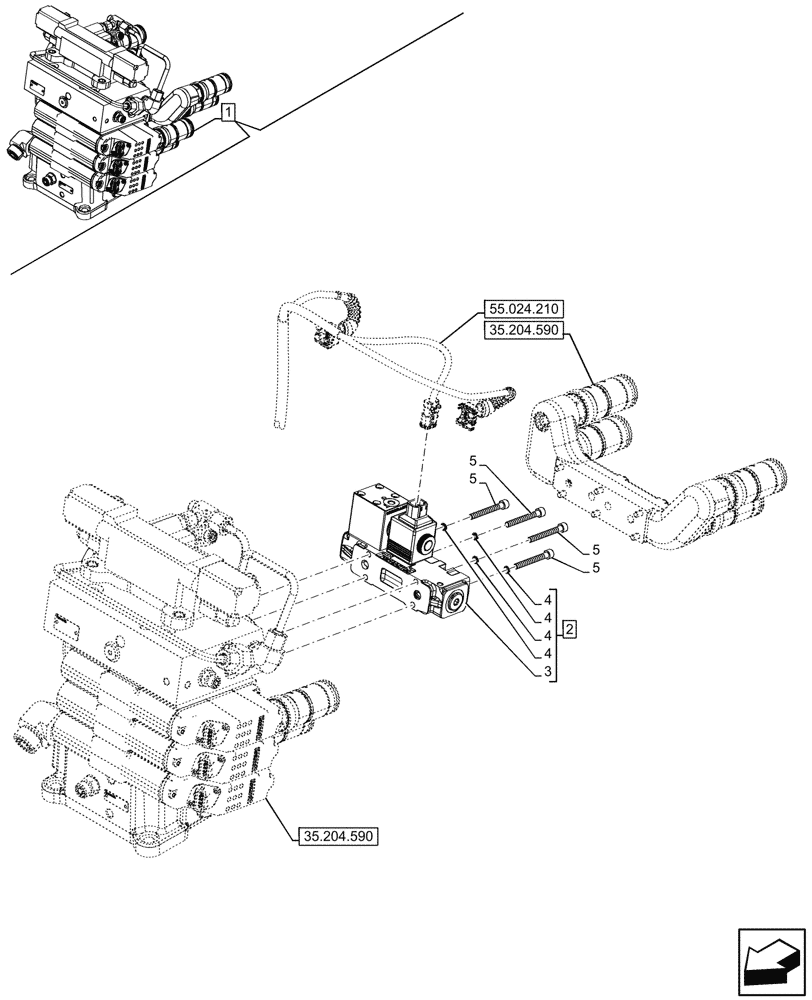

Схема запчастей Case IH FARMALL 110CL - (55.035.140) - VAR - 759025 - REMOTE CONTROL VALVE, DIVERTER, CAB (55) - ELECTRICAL SYSTEMS
55.024.210
1
5
4
3
2
4
4
5
5
4
35.204.590
35.204.590
5

Артикул

Название

Примечание

Количество

1

47910002

DISTRIBUTOR

ASSY, Electro Hydraulic Superflow, Incl 2 - 5

1шт.

See also Distributor Components in Figure 35.204.590

1шт.

2

47633685

HYDRAULIC VALVE

ASSY, Diverter, Incl 3, 4

1шт.

3

47737076

SOLENOID VALVE

Directional

1шт.

4

14457186

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

4шт.

5

356464

HEX SOC SCREW,M6 x 50mm, Cl 8.8

4шт.

Выбрано товаров: 6
