(55.035.110) - VAR - 759024 - 2 REMOTE CONTROL VALVES, W/ DIVERTER, SWITCH, CAB

Запчасти Case IH FARMALL 110CL (55.035.110) - VAR - 759024 - 2 REMOTE CONTROL VALVES, W/ DIVERTER, SWITCH, CAB (55) - ELECTRICAL SYSTEMS

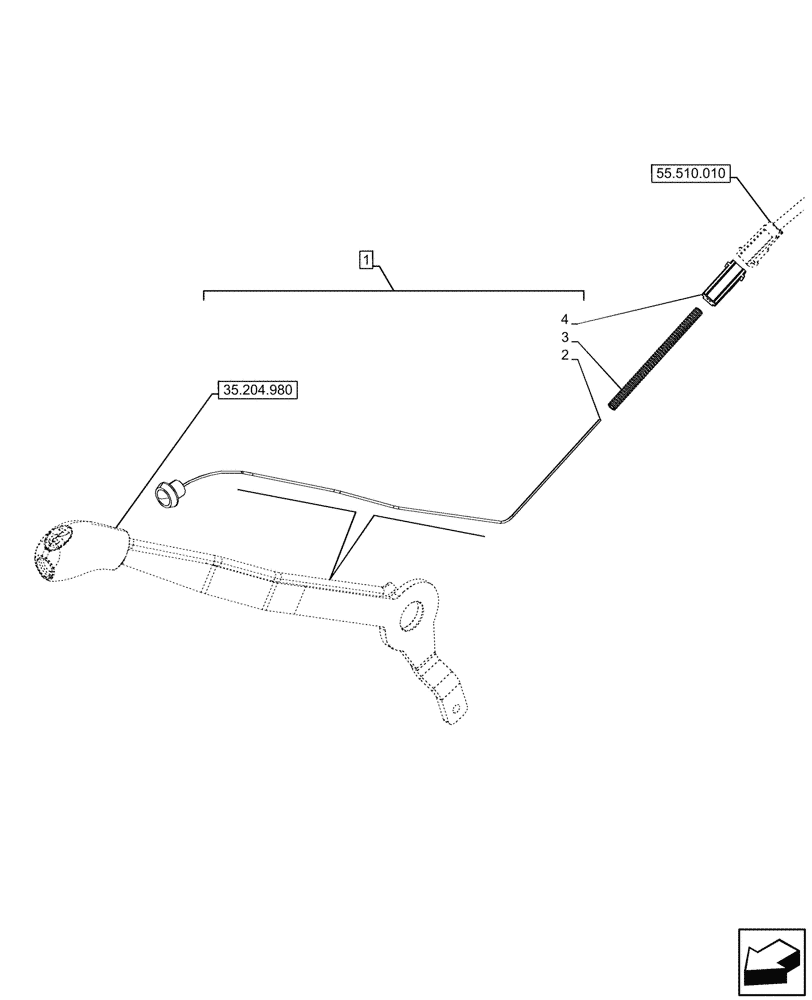

Схема запчастей Case IH FARMALL 110CL - (55.035.110) - VAR - 759024 - 2 REMOTE CONTROL VALVES, W/ DIVERTER, SWITCH, CAB (55) - ELECTRICAL SYSTEMS
55.510.010
2
4
3
1
35.204.980
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47964526

LEVER

ASSY, Incl 2 - 4

1шт.

See also Lever Components in Figure 35.204.980

1шт.

2

5192432

SWITCH

Push Button

1шт.

3

10180980

TUBE,0

Lever

1шт.

4

12483580

MULTIPOLE CONNECTOR

1шт.

Выбрано товаров: 5
