(55.035.010) - VAR - 759025 - REMOTE CONTROL VALVE, COMPONENTS (EDC), CAB

Запчасти Case IH FARMALL 110CL (55.035.010) - VAR - 759025 - REMOTE CONTROL VALVE, COMPONENTS (EDC), CAB (55) - ELECTRICAL SYSTEMS

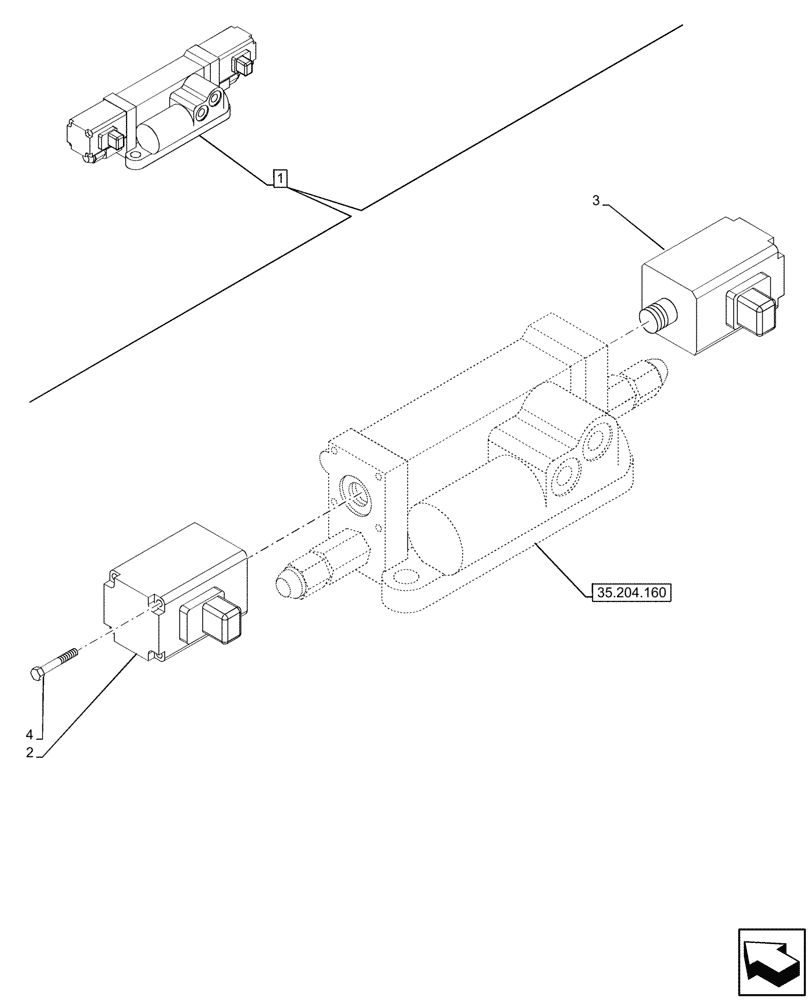

Схема запчастей Case IH FARMALL 110CL - (55.035.010) - VAR - 759025 - REMOTE CONTROL VALVE, COMPONENTS (EDC), CAB (55) - ELECTRICAL SYSTEMS
35.204.160
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82011395

HYDRAULIC VALVE

ASSY, Draft, Incl 2-4

1шт.

See also Remote Control Valve Componentes in Fig.35.240.160

1шт.

2

82012258

SOLENOID,12V

Raise

1шт.

3

82012223

SOLENOID,12V

Lower

1шт.

4

82865221

SCREW,M4 x 0.7 x 55mm, PLN

M4 x 55mm, Cl 12.9, PLN

8шт.
