(55.031.030) - VAR - 759028, 759029, 759031, 759033 - SWITCH, BRAKE, PEDAL

Запчасти Case IH FARMALL 110CL (55.031.030) - VAR - 759028, 759029, 759031, 759033 - SWITCH, BRAKE, PEDAL (55) - ELECTRICAL SYSTEMS

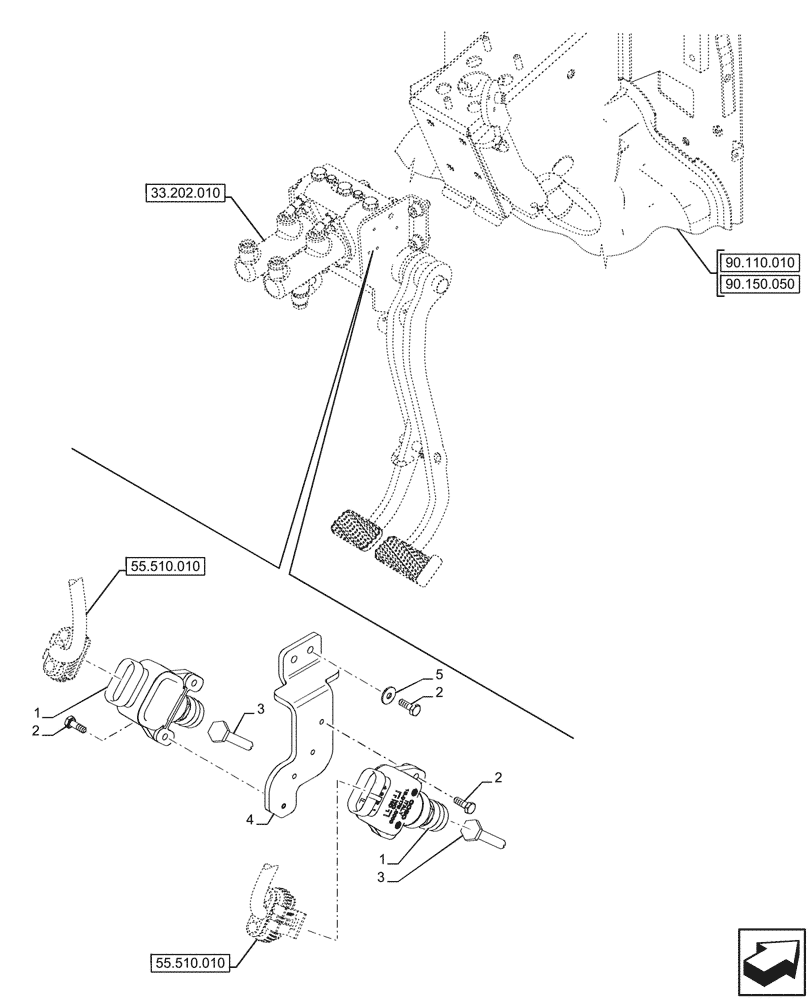

Схема запчастей Case IH FARMALL 110CL - (55.031.030) - VAR - 759028, 759029, 759031, 759033 - SWITCH, BRAKE, PEDAL (55) - ELECTRICAL SYSTEMS
55.510.010
1
1
4
2
3
3
5
2
33.202.010
2
90.110.010
90.150.050
55.510.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87484878

LIMIT SWITCH

2шт.

2

87015756

BOLT,Hex, M4 x 12mm, Cl 8.8, Full Thd

6шт.

3

48015480

PIN,M6 x 1 x 36mm L

2шт.

4

48005001

BRACKET

1шт.

5

12642801

WASHER,4.15mm ID x 12mm OD x 1mm Thk

2шт.
