(55.024.220) - VAR - 759007 - POWERSHUTTLE, TRANSMISSION CONTROL VALVE, SOLENOID, HI-LO, W/O PARKING LOCK, CREEPER

Запчасти Case IH FARMALL 110CL (55.024.220) - VAR - 759007 - POWERSHUTTLE, TRANSMISSION CONTROL VALVE, SOLENOID, HI-LO, W/O PARKING LOCK, CREEPER (55) - ELECTRICAL SYSTEMS

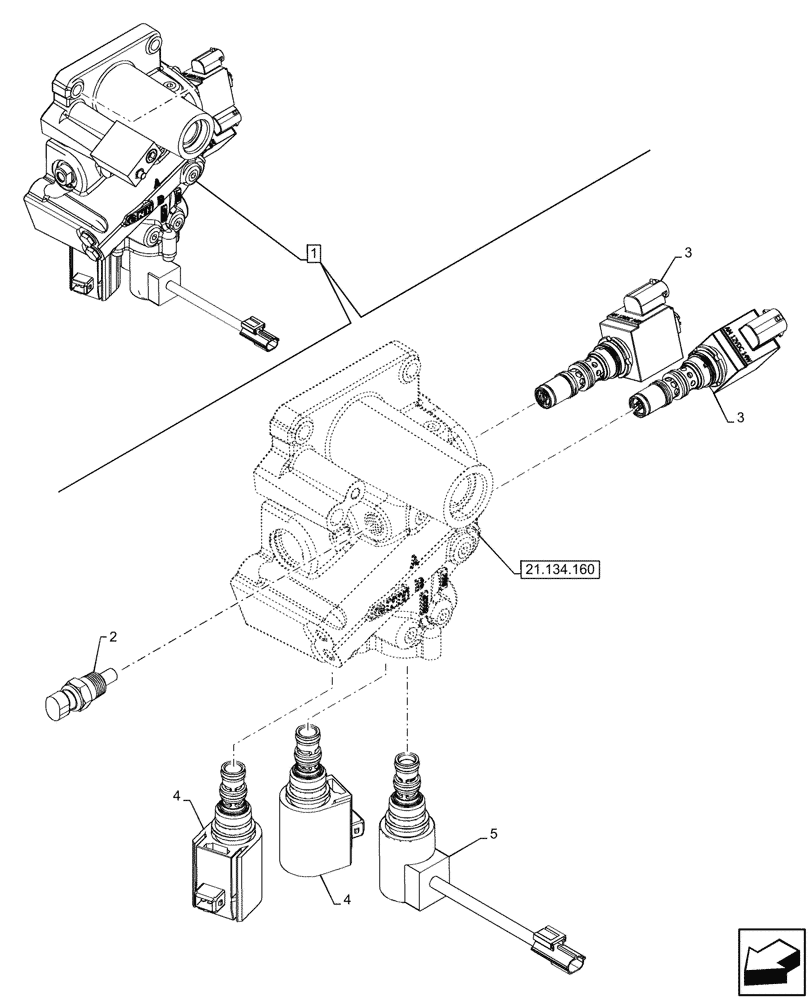

Схема запчастей Case IH FARMALL 110CL - (55.024.220) - VAR - 759007 - POWERSHUTTLE, TRANSMISSION CONTROL VALVE, SOLENOID, HI-LO, W/O PARKING LOCK, CREEPER (55) - ELECTRICAL SYSTEMS
21.134.160
5
3
2
3
4
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47928358

VALVE

ASSY Incl 2 - 5

1шт.

See also Valve Distributor For Reverser Components in Figure 21.134.150

1шт.

2

82028133

SENSOR,3/8"-18

1шт.

3

84556508

SOLENOID VALVE,10Ohm, 14W

2шт.

4

84556536

SOLENOID VALVE,12V, 1.6Amp, 19W, 7.6Ohm

2шт.

5

84556509

SOLENOID VALVE

1шт.
