(55.024.150) - TRANSMISSION, HARNESS, SUPPORT

Запчасти Case IH FARMALL 110CL (55.024.150) - TRANSMISSION, HARNESS, SUPPORT (55) - ELECTRICAL SYSTEMS

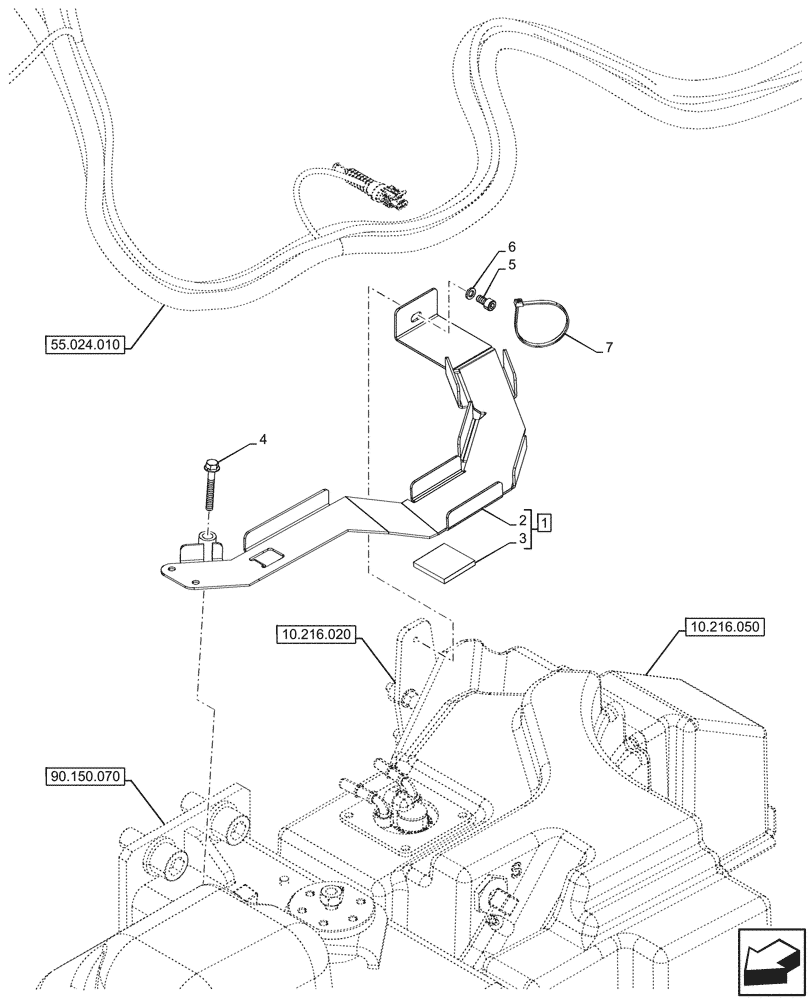

Схема запчастей Case IH FARMALL 110CL - (55.024.150) - TRANSMISSION, HARNESS, SUPPORT (55) - ELECTRICAL SYSTEMS
90.150.070
6
3
4
2
5
7
1
10.216.050
55.024.010
10.216.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47848412

CHANNEL

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Channel, Incl in 1

1шт.

3

47853781

RUBBER BUMPER,40mm L x 5mm Thk

1шт.

4

47824196

SCREW,M6 x 45mm, Cl 8.8

1шт.

5

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

1шт.

6

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

1шт.

7

14560187

COLLAR,199mm L

5шт.
