Запчасти Case IH FARMALL 110CL (55.024.010) - TRANSMISSION, MAIN HARNESS (55) - ELECTRICAL SYSTEMS

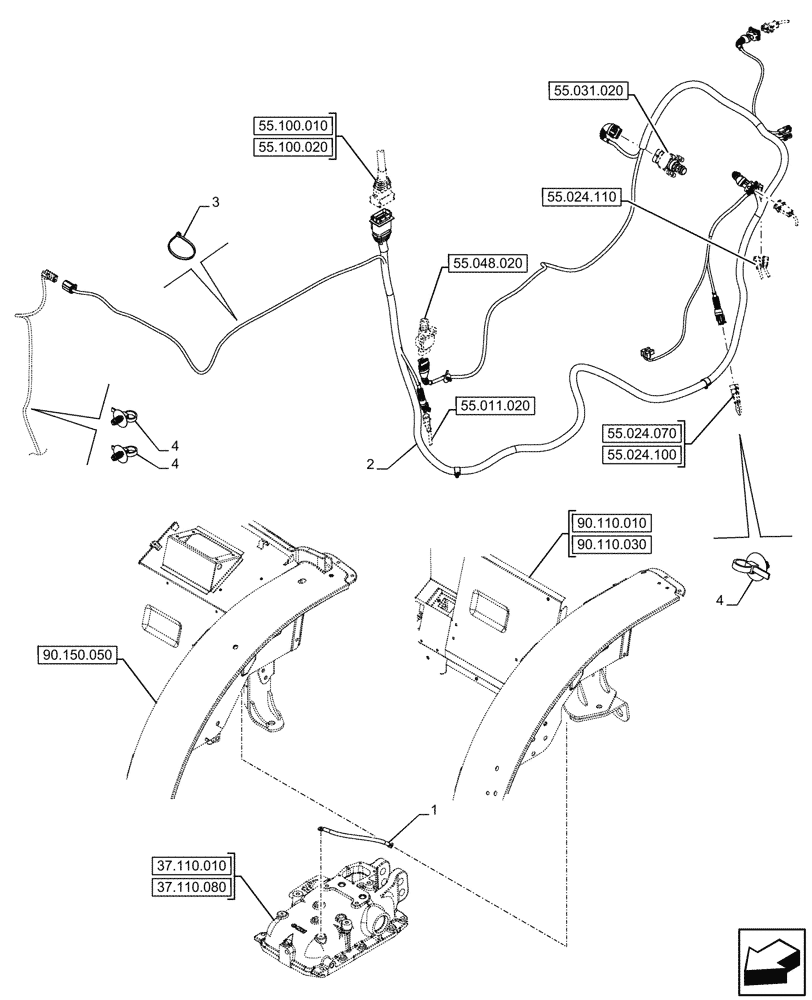

Схема запчастей Case IH FARMALL 110CL - (55.024.010) - TRANSMISSION, MAIN HARNESS (55) - ELECTRICAL SYSTEMS
55.024.110
3
1
4
4
4
37.110.010
37.110.080
2
90.110.030
90.110.010
55.024.070
90.150.050
55.024.100
55.011.020
55.031.020
55.100.010
55.048.020
55.100.020

Артикул

Название

Примечание

Количество

1

47437891

GROUND CABLE

1шт.

2

47930123

WIRE HARNESS

Transmission Harness

1шт.

3

14560187

COLLAR,199mm L

11шт.

4

82033028

CABLE TIE,170mm L

3шт.

Выбрано товаров: 4
