(55.015.020) - VAR - 759324, 759325 - ENGINE, WIRE HARNESS

Запчасти Case IH FARMALL 110CL (55.015.020) - VAR - 759324, 759325 - ENGINE, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

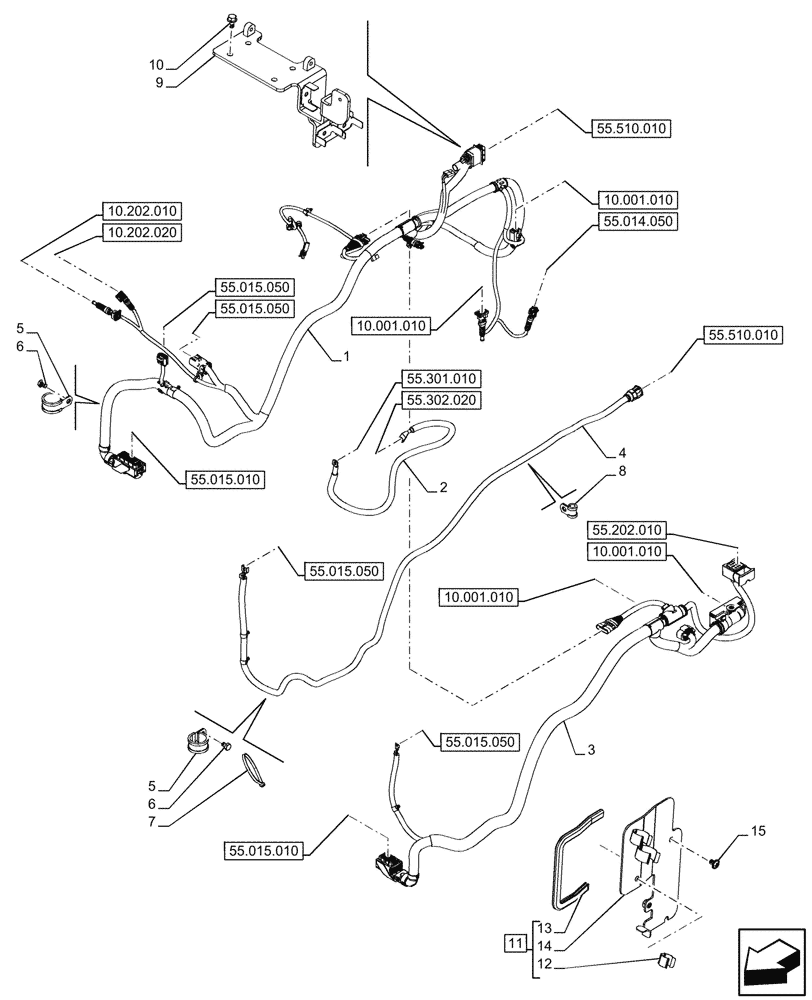

Схема запчастей Case IH FARMALL 110CL - (55.015.020) - VAR - 759324, 759325 - ENGINE, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
10.001.010
12
11
15
6
5
3
10
4
5
14
7
9
13
2
6
1
8
10.202.020
55.301.010
55.014.050
55.202.010
55.302.020
55.015.050
55.015.050
55.015.050
55.015.050
55.015.010
55.015.010
10.202.010
55.510.010
55.510.010
10.001.010
10.001.010
10.001.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48001597

WIRE HARNESS

Engine Harness TIER4

1шт.

2

84549464

HARNESS

Starter Motor-Alternator, Positive

1шт.

3

47482643

WIRE HARNESS

Engine Harness TIER4A

1шт.

4

47498534

ELECTRIC CABLE

Cab Power Cable

1шт.

5

10442090

RETAINER,26mm, Coat, P Type

2шт.

6

10979414

SCREW,Hex, M6 x 10mm, Cl 5.8

2шт.

7

14560187

COLLAR,199mm L

9шт.

8

10441190

CLAMP,8mm, Coat, 7mm Bolt Hole, P Type

1шт.

9

47905628

BRACKET

Black

1шт.

10

47455733

FLANGE BOLT,Hex, M8 x 16, Full Thd, Cl 8.8

4шт.

11

48093558

ASSY, Incl 12 - 14

BRACKET

1шт.

12

NSS

NOT SOLD SEPARAT

Bracket, Incl in 11

1шт.

13

48079230

RUBBER SEAL,365mm L x 15mm W x 10mm Thk

1шт.

14

47439927

SPRING CLIP,17-20mm OD

1шт.

15

920019109

HEX SOC SCREW,Flg, Btn Hd, M8 x 12mm, Cl 8.8

2шт.
