(50.200.130) - VAR - 759011 - AIR CONDITIONING, W/ ECO CAB, LINE, CAB

Запчасти Case IH FARMALL 110CL (50.200.130) - VAR - 759011 - AIR CONDITIONING, W/ ECO CAB, LINE, CAB (50) - CAB CLIMATE CONTROL

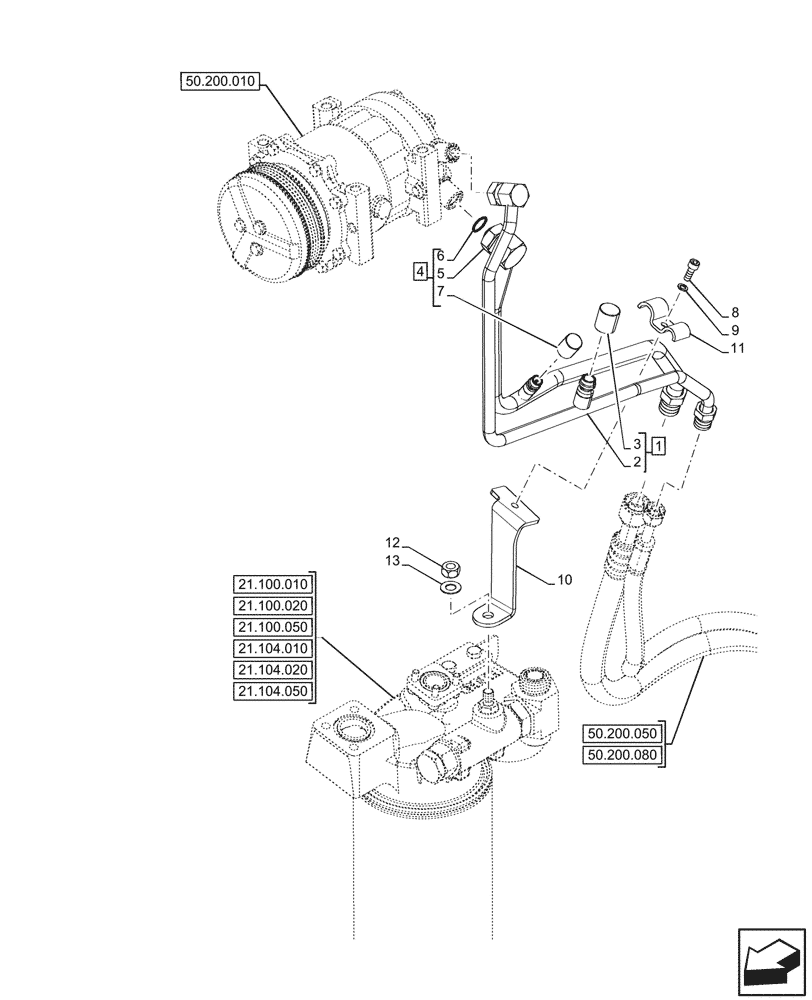

Схема запчастей Case IH FARMALL 110CL - (50.200.130) - VAR - 759011 - AIR CONDITIONING, W/ ECO CAB, LINE, CAB (50) - CAB CLIMATE CONTROL
21.100.050
3
12
2
10
8
5
11
7
4
9
1
6
21.104.020
21.100.020
13
50.200.080
50.200.010
50.200.050
21.104.010
21.100.010
21.104.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47913593

PIPE

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

1шт.

4

47913579

PIPE

ASSY, A/C, Incl 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Pipe, Incl in 4

1шт.

6

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Cap, Incl in 4

1шт.

8

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

1шт.

9

12648278

WASHER,6.15mm ID x 10mm OD x 1mm Thk

1шт.

10

47918599

BRACKET

1шт.

11

84359932

BRACKET

1шт.

12

84814894

NUT,M10 x 1, Cl 8.8

1шт.

13

12642421

WASHER,10.2mm ID x 20mm OD x 1mm Thk

1шт.
