(50.200.070) - VAR - 759033 - AIR CONDITIONING, W/ SUPER ECO CAB, LINE, CAB

Запчасти Case IH FARMALL 110CL (50.200.070) - VAR - 759033 - AIR CONDITIONING, W/ SUPER ECO CAB, LINE, CAB (50) - CAB CLIMATE CONTROL

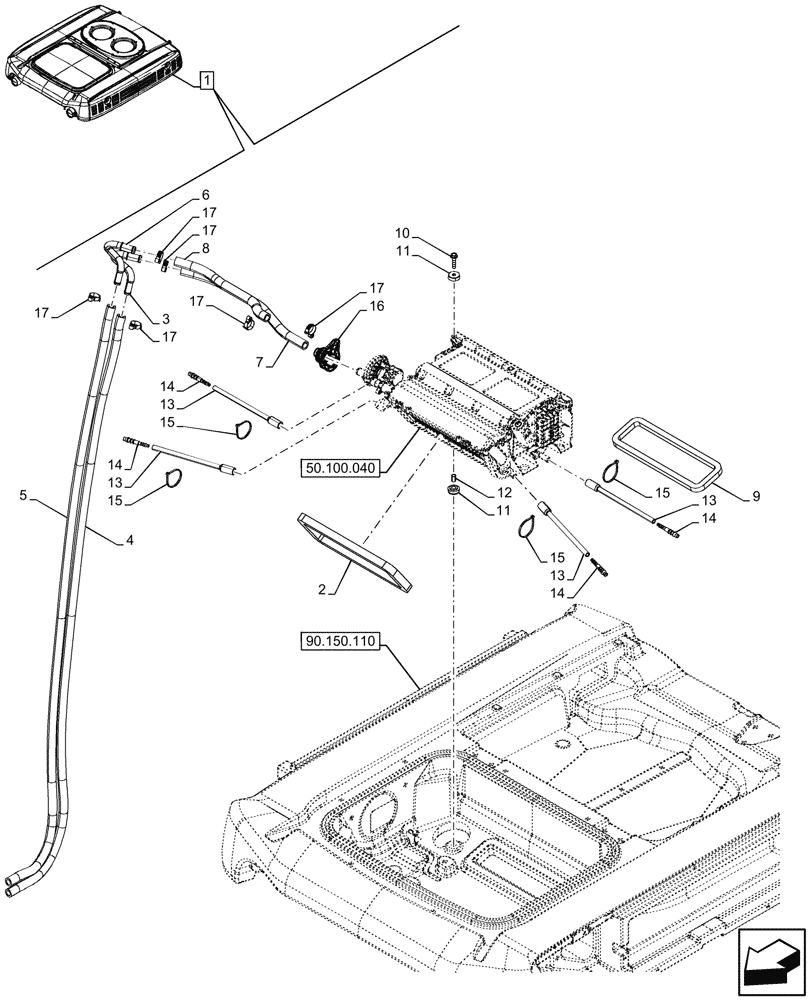

Схема запчастей Case IH FARMALL 110CL - (50.200.070) - VAR - 759033 - AIR CONDITIONING, W/ SUPER ECO CAB, LINE, CAB (50) - CAB CLIMATE CONTROL
50.100.040
13
15
3
14
2
6
17
7
12
14
16
15
8
9
13
1
17
14
17
13
15
17
13
4
14
15
11
17
5
10
17
11
90.150.110
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47978399

ROOF

1шт.

See also Roof Components in Figure 50.100.040, 50.104.030, 50.200.080, 55.050.030, 55.050.040, 55.050.050, 55.404.190, 90.150.110

1шт.

2

47902821

GASKET,342.7mm L x 138.9mm W x 20mm Thk

1шт.

3

48009347

HOSE,16/18mm ID x 63.5mm L

Water OUT, Connection

1шт.

4

48065670

HOSE,14mm ID x 2570mm L, Rubber

Water OUT

1шт.

5

48065672

HOSE,14mm ID x 2570mm L, Rubber

Water IN

1шт.

6

48009346

HOSE

Water IN, Connection

1шт.

7

48047623

PIPE,24mm OD x 455mm L

455mm, Water Exhaust

1шт.

8

48047624

PIPE,24mm OD x 355mm L

355mm, Water Intake

1шт.

9

47792462

GASKET,223mm L x 104.5mm W x 15mm Thk

1шт.

10

13839611

BOLT,Hex, M8 x 35mm, 22Thd, R50 IND

4шт.

11

47902857

RUBBER BUMPER,20mm ID x 28mm OD x 12mm Thk

8шт.

12

47902854

SPACER,9mm ID x 11mm OD x 16mm L

4шт.

13

48022894

PIPE

4шт.

14

48022895

PIPE

4шт.

15

14560187

COLLAR,199mm L

4шт.

16

47779866

PLATE

1шт.

17

47902813

CLAMP

6шт.
