(50.200.060) - VAR - 759031 - AIR CONDITIONING, W/ ECO CAB, DRAIN LINE, CAB

Запчасти Case IH FARMALL 110CL (50.200.060) - VAR - 759031 - AIR CONDITIONING, W/ ECO CAB, DRAIN LINE, CAB (50) - CAB CLIMATE CONTROL

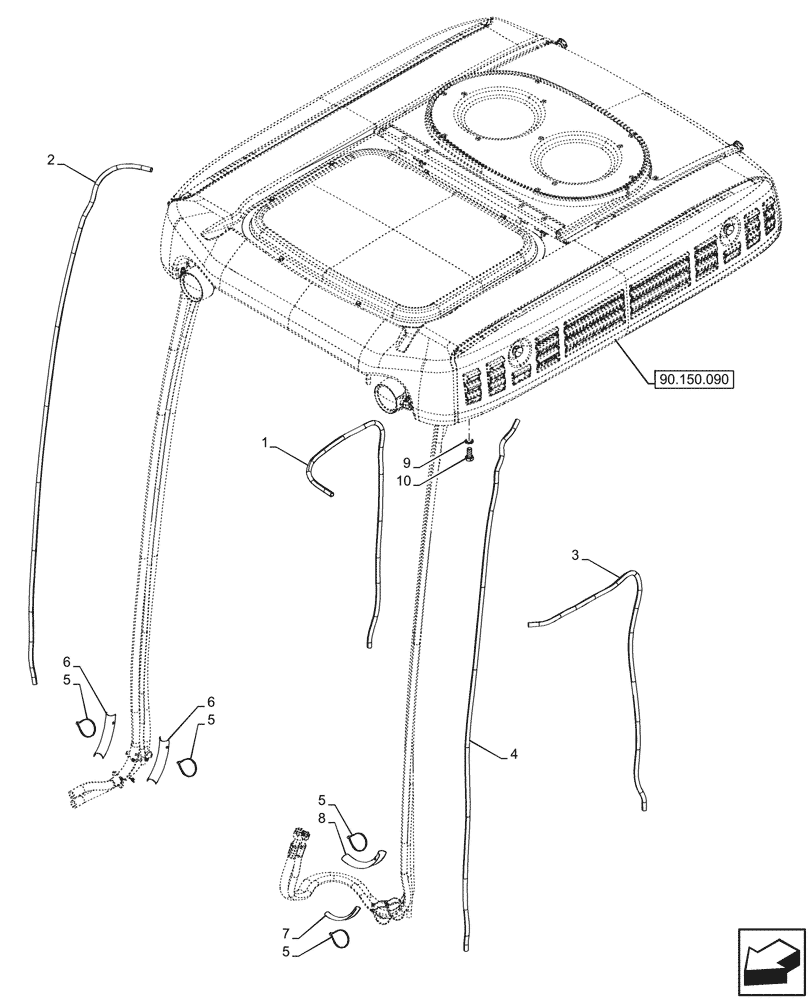

Схема запчастей Case IH FARMALL 110CL - (50.200.060) - VAR - 759031 - AIR CONDITIONING, W/ ECO CAB, DRAIN LINE, CAB (50) - CAB CLIMATE CONTROL
90.150.090
5
1
5
3
5
9
6
8
5
10
4
7
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47918876

HOSE,9mm ID x 1185mm L

LH, 1185mm

1шт.

2

47918877

HOSE,9mm ID x 1674mm L

LH, 1675mm

1шт.

3

47918878

HOSE,9mm ID x 1227mm L

RH, 1227mm

1шт.

4

47918879

HOSE,9mm ID x 1794mm L

RH, 1794mm

1шт.

5

14560187

COLLAR,199mm L

8шт.

6

47918552

SHROUD

Black

2шт.

7

47804968

SHIELD

Black

1шт.

8

47804970

SHIELD

Black

1шт.

9

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

1шт.

10

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.
