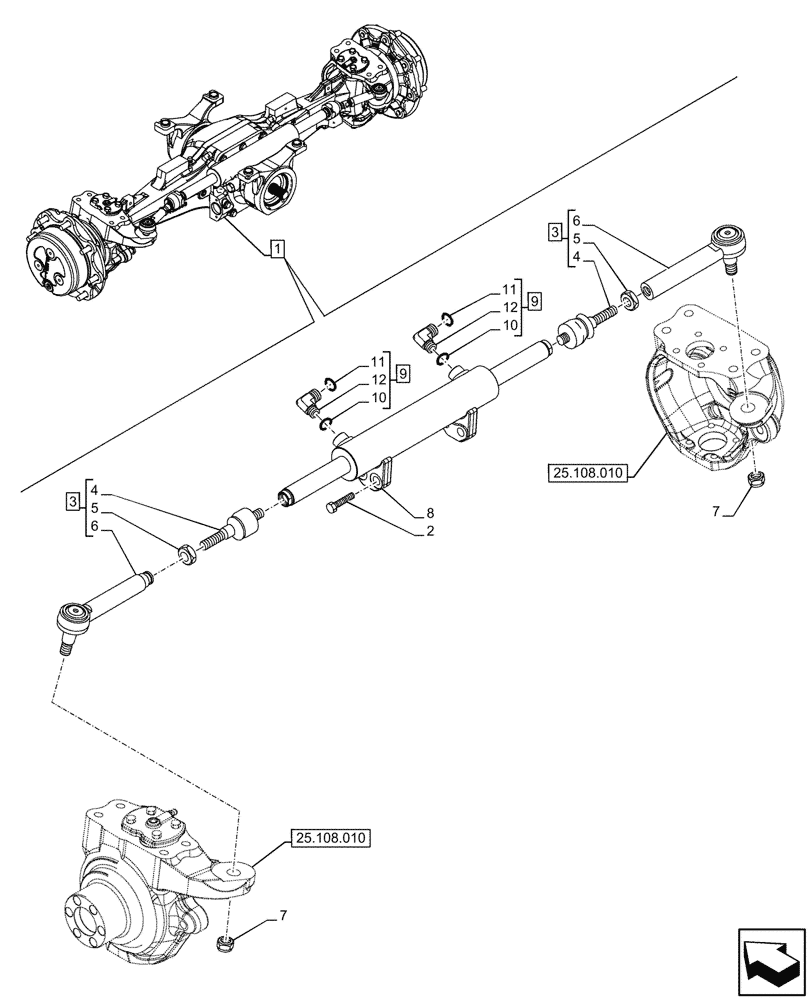

Запчасти Case IH FARMALL 110CL (41.216.010) - VAR - 332328 - 4WD FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL (RATIO 14.5), STEERING CYLINDER & TIE ROD (41) - STEERING

1

47625660

FRONT AXLE

ASSY, Incl 2 - 12

1шт.

See also Front Axle Components in Figures 25.100.040, 25.100.050, 25.102.010, 25.102.020, 25.108.010, 25.108.020, 25.108.030, 41.216.030

1шт.

2

47730428

BOLT

4шт.

3

47730424

STEERING ARM

ASSY, Incl 4 - 6

2шт.

4

87313795

BALL JOINT,M18 / M20

2шт.

5

87313796

NUT

2шт.

6

47730426

TIE-ROD

2шт.

7

85805982

NUT,M18 x 1.5

2шт.

8

47730409

STEERING CYLINDER

1шт.

9

5188442

HYD CONNECTOR,11/16-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 10 - 12

2шт.

10

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

11

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

12

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 9

2шт.
