(39.140.070) - VAR - 744134 - REAR, BALLAST (192 KG)

Запчасти Case IH FARMALL 110CL (39.140.070) - VAR - 744134 - REAR, BALLAST (192 KG) (39) - FRAMES AND BALLASTING

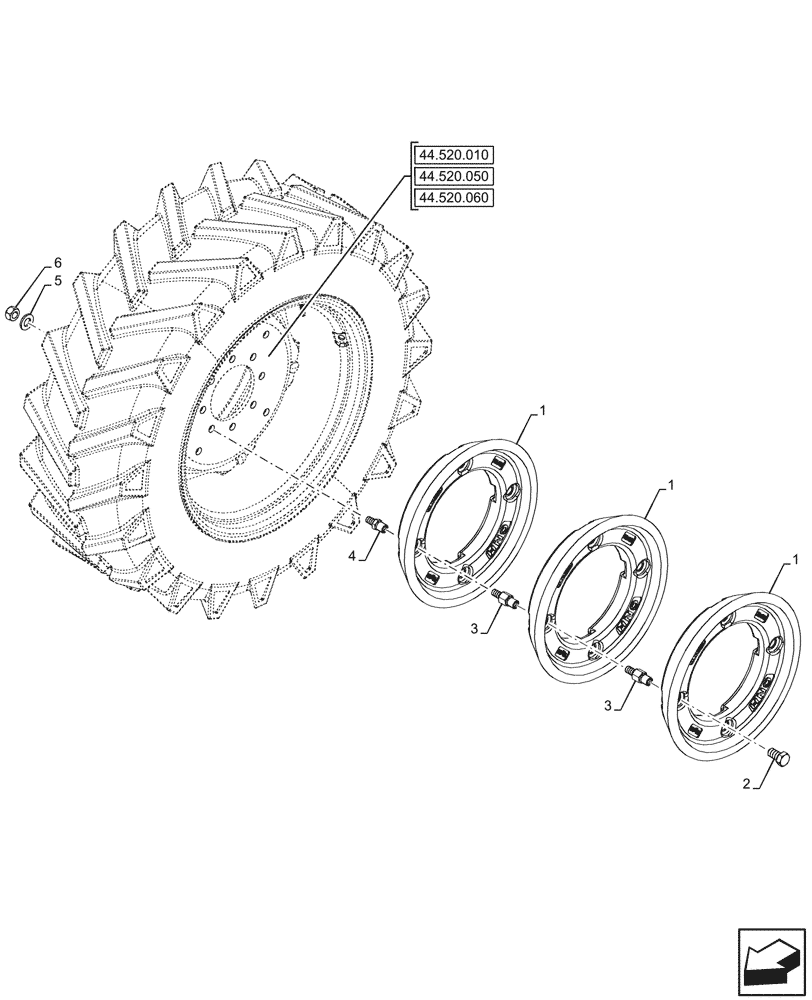

Схема запчастей Case IH FARMALL 110CL - (39.140.070) - VAR - 744134 - REAR, BALLAST (192 KG) (39) - FRAMES AND BALLASTING
44.520.050
3
1
6
2
3
1
1
5
4
44.520.010
44.520.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47131265

WHEEL DISC,330mm Dia, 4 Bolts, CNH Dark Grey

32Kg

3шт.

2

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

8шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

4шт.

5

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

6

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

4шт.
