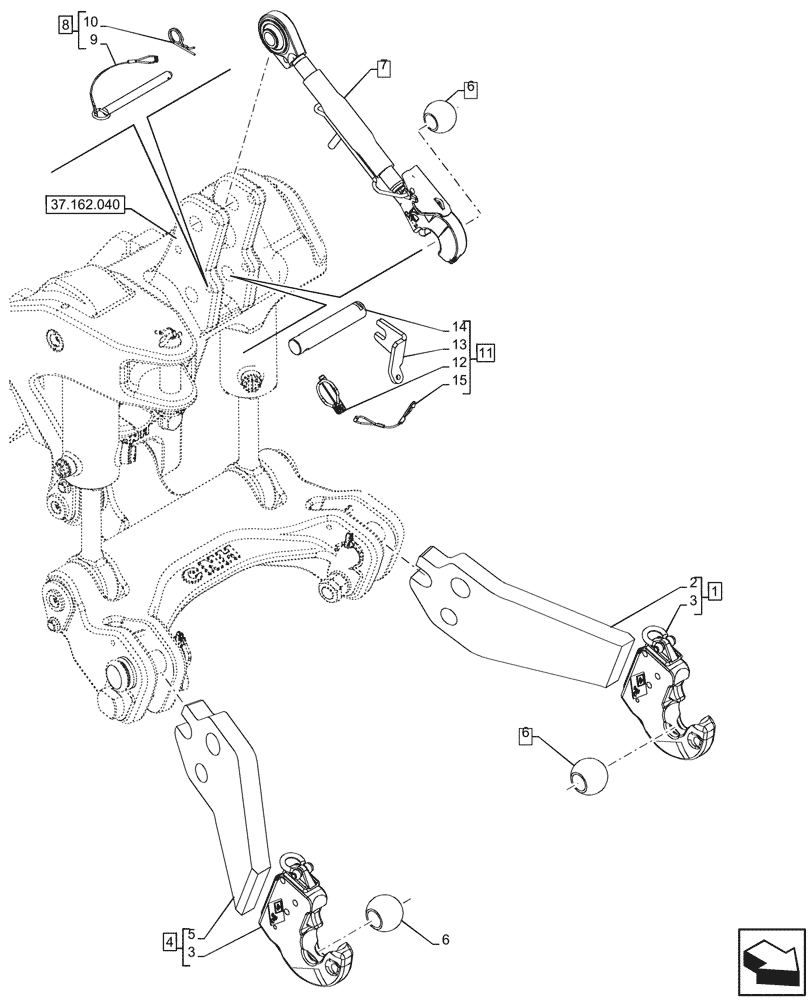

Запчасти Case IH FARMALL 110CL (37.162.020) - VAR - 743522, 759019 - ATTACHMENT, ARM, HYDRAULIC LIFT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47928861

LIFT ARM

ASSY, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Left Arm, Incl in 1

1шт.

3

84375422

HOOK

2шт.

4

47928857

LIFT ARM

ASSY, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Right Arm, Incl in 4

1шт.

6

87302848

BALL,28mm ID x 56mm OD

2шт.

7

47957956

LINK

1шт.

8

47457844

LOCK PIN,12mm OD x 135mm L

ASSY, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Pin and Wire, Incl in 8

1шт.

10

84561112

COTTER PIN,3.63mm x 54.25mm L

1шт.

11

47719753

PIN,127mm L

ASSY, Incl 12 - 15

1шт.

12

47458998

LINCH PIN,9.5mm OD x 62mm L

1шт.

13

NSS

NOT SOLD SEPARAT

Bracket, Incl in 11

1шт.

14

NSS

NOT SOLD SEPARAT

Bolt, Incl in 11

1шт.

15

NSS

NOT SOLD SEPARAT

Covered Wire, Incl in 11

1шт.
