Запчасти Case IH FARMALL 110CL (37.120.330) - VAR - 743535 - REAR, 3 POINT HITCH, STABILIZER BAR, HYDRAULIC, W/O CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

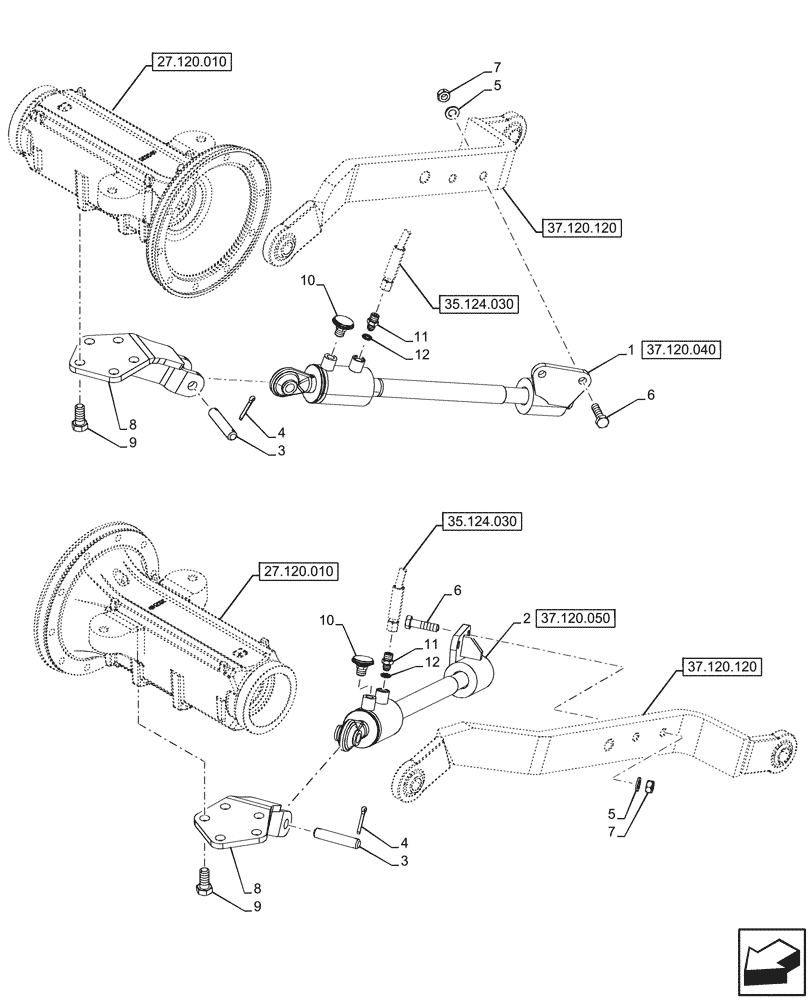

Схема запчастей Case IH FARMALL 110CL - (37.120.330) - VAR - 743535 - REAR, 3 POINT HITCH, STABILIZER BAR, HYDRAULIC, W/O CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
35.124.030
11
6
3
9
5
7
4
10
9
12
2
5
3
1
8
7
10
12
11
4
6
8
37.120.120
37.120.120
37.120.050
27.120.010
27.120.010
37.120.040
35.124.030

Артикул

Название

Примечание

Количество

1

5197060

STABILIZER

RH

1шт.

2

5197059

STABILIZER

LH

1шт.

3

5103860

PIN,19mm OD x 94mm L

19mm OD x 94mm L

2шт.

4

10798304

COTTER PIN,6.3mm OD x 36mm L

4шт.

5

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

4шт.

6

11422034

BOLT,Hex, M15 x 55mm, Class 10.9

4шт.

7

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

4шт.

8

5179942

SUPPORT

2шт.

9

11408524

BOLT,Hex, M18 x 1.5 x 40mm, Cl 8.8

8шт.

10

83925022

BREATHER,.375-18 NPT

2шт.

11

5158808

HYD CONNECTOR,M16 x 1.5 x 34mm L

2шт.

12

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

Выбрано товаров: 12
