(37.120.250) - VAR - 758895 - REAR, 3 POINT HITCH, ADJUSTMENT ROD, MECHANICAL

Запчасти Case IH FARMALL 110CL (37.120.250) - VAR - 758895 - REAR, 3 POINT HITCH, ADJUSTMENT ROD, MECHANICAL (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

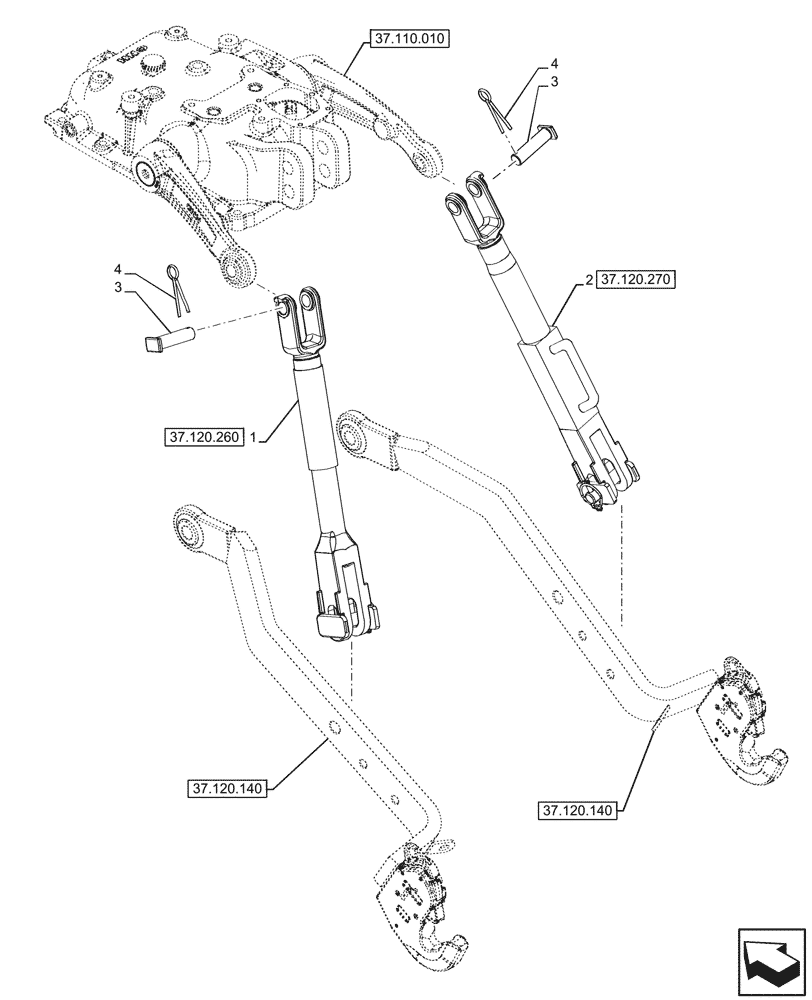

Схема запчастей Case IH FARMALL 110CL - (37.120.250) - VAR - 758895 - REAR, 3 POINT HITCH, ADJUSTMENT ROD, MECHANICAL (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.120.260
4
3
1
4
2
3
37.110.010
37.120.270
37.120.140
37.120.140
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47123247

TIE-ROD,M27 x 3 x 570/690mm L

ASSY, LH

1шт.

2

87543731

TIE-ROD,M27 x 2 x 570/690mm L

ASSY, RH

1шт.

3

47126271

PIN,22mm OD x 84mm L

2шт.

4

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

Выбрано товаров: 4
