(37.120.220) - VAR - 743536 - REAR, 3 POINT HITCH, ADJUSTMENT ROD, HYDRAULIC

Запчасти Case IH FARMALL 110CL (37.120.220) - VAR - 743536 - REAR, 3 POINT HITCH, ADJUSTMENT ROD, HYDRAULIC (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

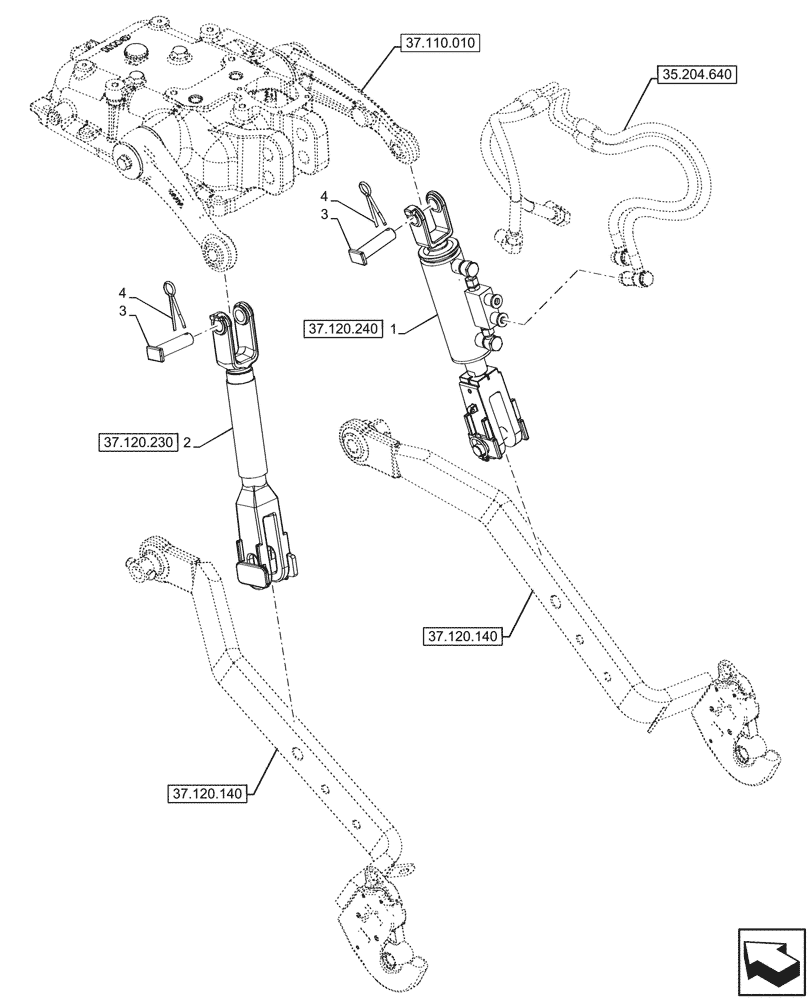

Схема запчастей Case IH FARMALL 110CL - (37.120.220) - VAR - 743536 - REAR, 3 POINT HITCH, ADJUSTMENT ROD, HYDRAULIC (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
35.204.640
4
3
1
3
4
37.110.010
2
37.120.140
37.120.230
37.120.140
37.120.240
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87304348

LIFTING ROD

ASSY, RH

1шт.

2

84346744

TIE-ROD,M27 x 3 x 475/550mm L

ASSY, LH

1шт.

3

47126271

PIN,22mm OD x 84mm L

2шт.

4

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

Выбрано товаров: 4
