(37.120.190) - VAR - 758895 - REAR, 3 POINT HITCH, ADJUSTMENT ROD

Запчасти Case IH FARMALL 110CL (37.120.190) - VAR - 758895 - REAR, 3 POINT HITCH, ADJUSTMENT ROD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

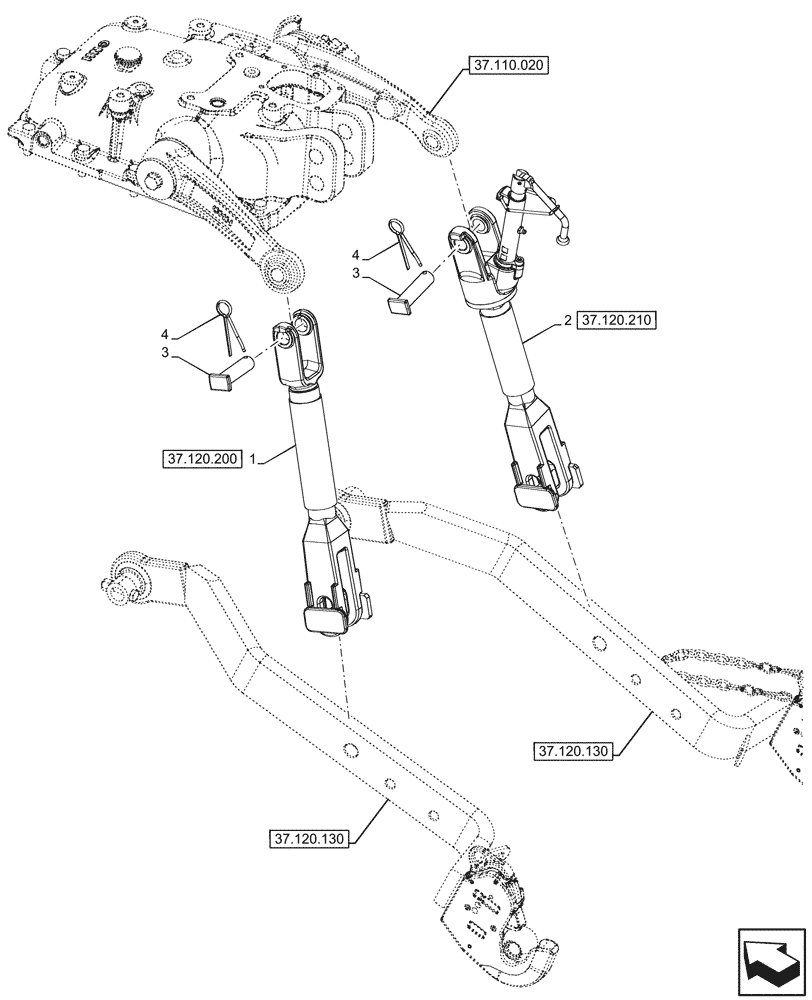

Схема запчастей Case IH FARMALL 110CL - (37.120.190) - VAR - 758895 - REAR, 3 POINT HITCH, ADJUSTMENT ROD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.120.210
3
2
1
4
3
4
37.110.020
37.120.130
37.120.130
37.120.200
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84346744

TIE-ROD,M27 x 3 x 475/550mm L

1шт.

2

84401549

TIE-ROD,M27 x 3 x 475/550mm L

1шт.

3

47126271

PIN,22mm OD x 84mm L

35mm OD x 90mm L

2шт.

4

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

Выбрано товаров: 4
