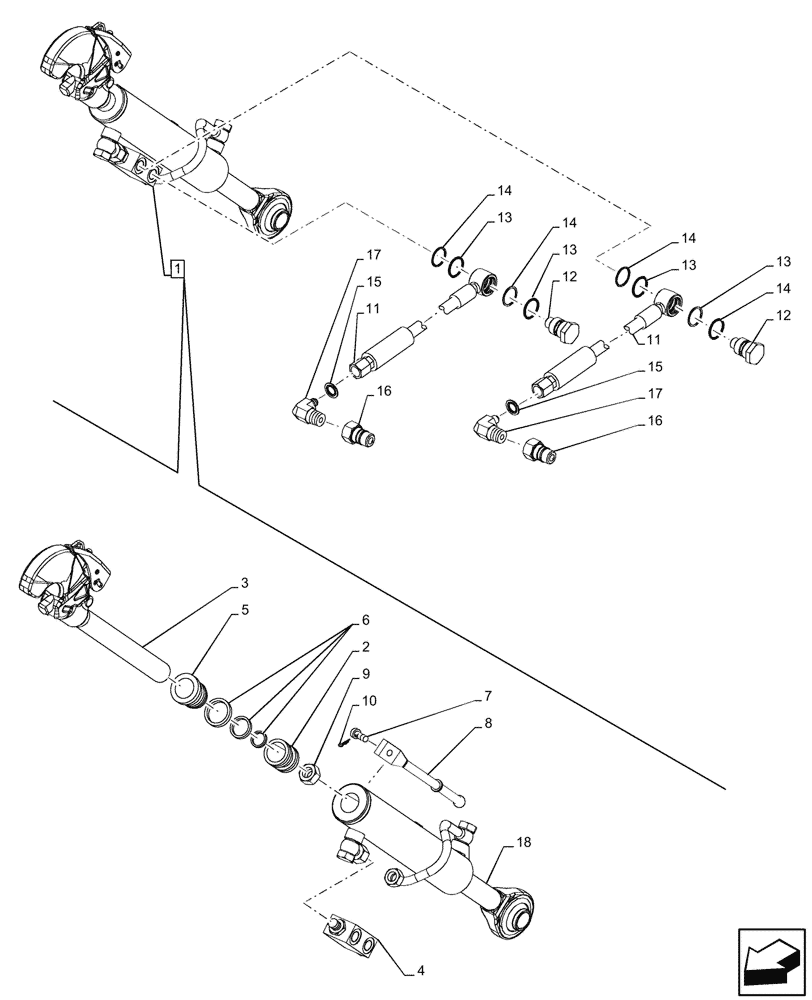

Запчасти Case IH FARMALL 110CL (37.120.170) - VAR - 744480 - REAR, 3 POINT HITCH, W/ HYDRAULIC TOP LINK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84345877

TOP LINK

ASSY, Incl 2 - 10, 18

1шт.

2

5190476

SPOOL

1шт.

3

84410457

LINK ARM ASSY KIT

1шт.

4

84410458

LOCK VALVE

1шт.

5

5190477

END PLATE

1шт.

6

84410459

SEAL KIT

1шт.

7

84410462

PIN

1шт.

8

5172394

LEVER

1шт.

9

12575011

LOCK NUT,M18 x 1.5, Cl 8

1шт.

10

14163971

LOCK PIN,4mm OD x 20mm L

1шт.

11

84347389

HYD TUBE

2шт.

12

84347388

HYD CONNECTOR,M16 x 1.5 x 47mm L

2шт.

13

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

4шт.

14

5189534

WASHER,25.8mm ID x 30.2mm OD x 1.1mm Thk

4шт.

15

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

2шт.

16

5101741

QUICK MALE COUPLING

2шт.

17

5179497

HYD CONNECTOR,9/16-18 UNF

2шт.

18

NSS

NOT SOLD SEPARAT

Strut, incl in 1

1шт.
