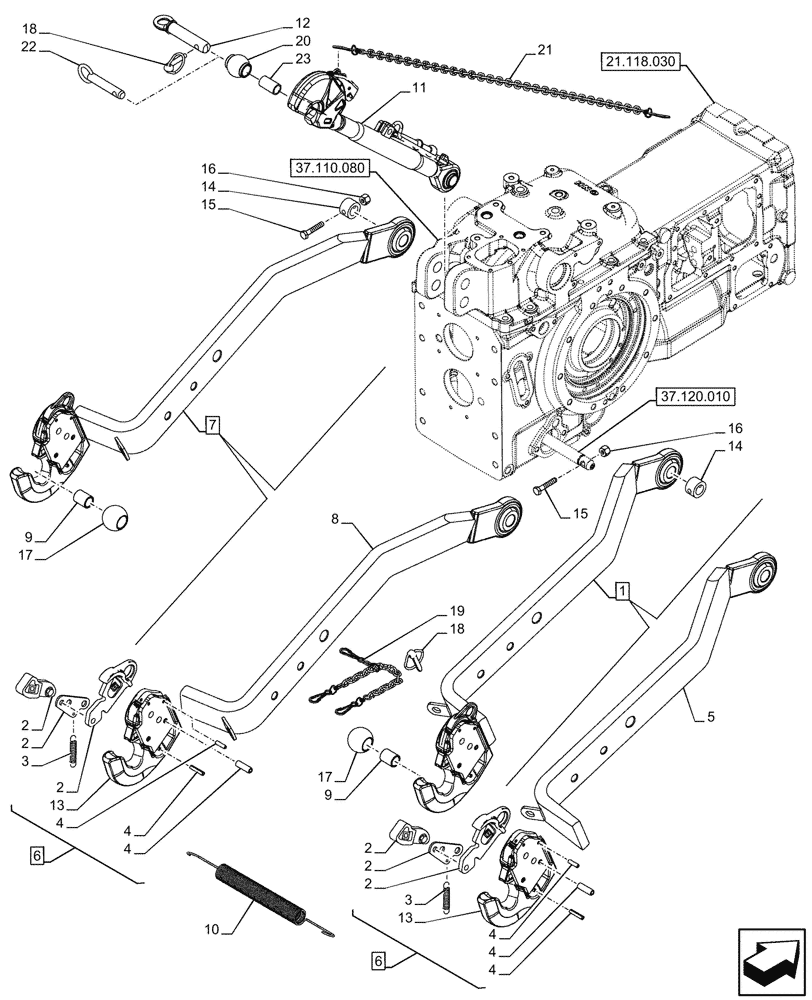

Запчасти Case IH FARMALL 110CL (37.120.140) - VAR - 759387 - REAR, 3 POINT HITCH, TOP LINK, LOWER LINK, W/ QUICK ENDS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87592716

ARM

ASSY, RH, Incl 2 (Qty 1), 3 (Qty 1), 4 (Qty 1), 5, 6 (Qty 1), 13 (Qty 1)

1шт.

2

5189339

KIT

Lever

2шт.

3

5189340

SPRING

2шт.

4

5189337

KIT

Spring Kit

2шт.

5

NSS

NOT SOLD SEPARAT

Lower Hook, RH, Incl in 6

1шт.

6

5189331

HOOK

ASSY, Incl 2 - 5, 13

2шт.

7

87592721

ARM

ASSY, LH, Incl 2 (Qty 1), 3 (Qty 1), 4 (Qty 1), 6 (Qty 1), 8, 13 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Lower Hook, LH, Incl in 6

1шт.

9

5192619

BUSHING,22mm ID x 28.4mm OD x 35mm L

2шт.

10

5116058

SPRING,610mm L

1шт.

11

5199284

TOP LINK

Gray

1шт.

12

822483

PIN,25.5mm OD x 137mm L

Cat. 2

1шт.

13

NSS

NOT SOLD SEPARAT

Hook, Incl in 6

2шт.

14

5116247

RING,24mm ID x 38.4mm OD x 25mm L

2шт.

15

15888724

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

2шт.

16

12574514

LOCK NUT,M10 x 1.25

2шт.

17

822441

BUSHING,29mm ID x 56mm OD x 44.5mm L

2шт.

18

5166585

LOCK PIN,11mm OD

3шт.

19

5116063

ROPE,4500mm L

1шт.

20

5172480

BALL,25.4mm ID x 50mm OD

1шт.

21

5174395

CABLE,1250mm L, Cat 2, Red Ruby

1шт.

22

561831

PIN,19mm OD x 100mm L

Cat. 1

1шт.

23

5134566

BUSHING,19.4mm ID x 25mm OD x 44mm L

1шт.
