Запчасти Case IH FARMALL 110CL (37.110.080) - VAR - 743523 - REAR, HYDRAULIC LIFT, ELECTRONIC DRAFT CONTROL (EDC), HOUSING, ARM, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

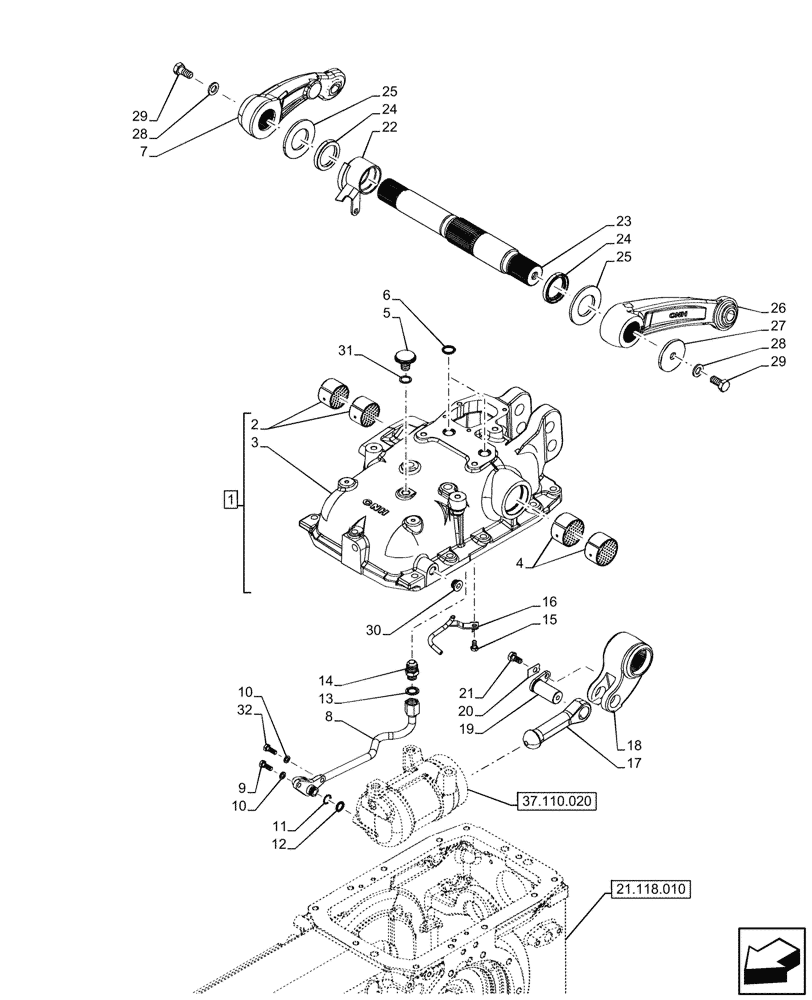

Схема запчастей Case IH FARMALL 110CL - (37.110.080) - VAR - 743523 - REAR, HYDRAULIC LIFT, ELECTRONIC DRAFT CONTROL (EDC), HOUSING, ARM, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
30
23
8
1
29
27
21
20
26
13
28
10
5
11
16
25
10
3
12
31
15
19
14
22
32
17
4
7
25
18
6
28
2
24
9
24
21.118.010
37.110.020
29

Артикул

Название

Примечание

Количество

1

87382594

BODY

ASSY, Incl 2 - 4

1шт.

2

5181871

BUSHING,47.98mm ID x 53.03mm OD x 35mm L

RH

2шт.

3

87382579

BODY

1шт.

4

5181870

BUSHING,55.1mm ID x 60.03mm OD x 35mm L

LH

2шт.

5

83925022

BREATHER,.375-18 NPT

1шт.

6

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

2шт.

7

5176875

ARM

RH

1шт.

8

47130049

RIGID TUBE

from Distributor to Lift Cylinder

1шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

10

10571770

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

2шт.

11

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

12

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

13

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

1шт.

14

5158806

HYD CONNECTOR,7/8-14 UNF, M18 x 1.5

1шт.

15

5183490

RIGID TUBE

Lubrification

1шт.

16

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

17

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

18

5176633

ARM

1шт.

19

5176612

PIN,60mm L

1шт.

20

14198810

LOCKING PLATE,M10

1шт.

21

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

22

5196478

RING

1шт.

23

5176508

CONTROL SHAFT,50/43.5mm ID x 54.4/46.5mm OD x 428mm L, 42/60T

1шт.

24

5125650

OIL SEAL,48mm ID x 65mm OD x 10mm Thk

2шт.

25

5125649

SPACER,47mm ID x 85mm OD x 6mm L

2шт.

26

5176728

ARM

LH

1шт.

27

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

28

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

1шт.

29

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

30

10273111

PLUG,M18 x 1.5 x 13

1шт.

31

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

32

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 32
