Запчасти Case IH FARMALL 110CL (37.110.060) - VAR - 744833, 759013 - REAR, HYDRAULIC LIFT, CONTROL LEVER, W/ LIFT-O-MATIC PLUS, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

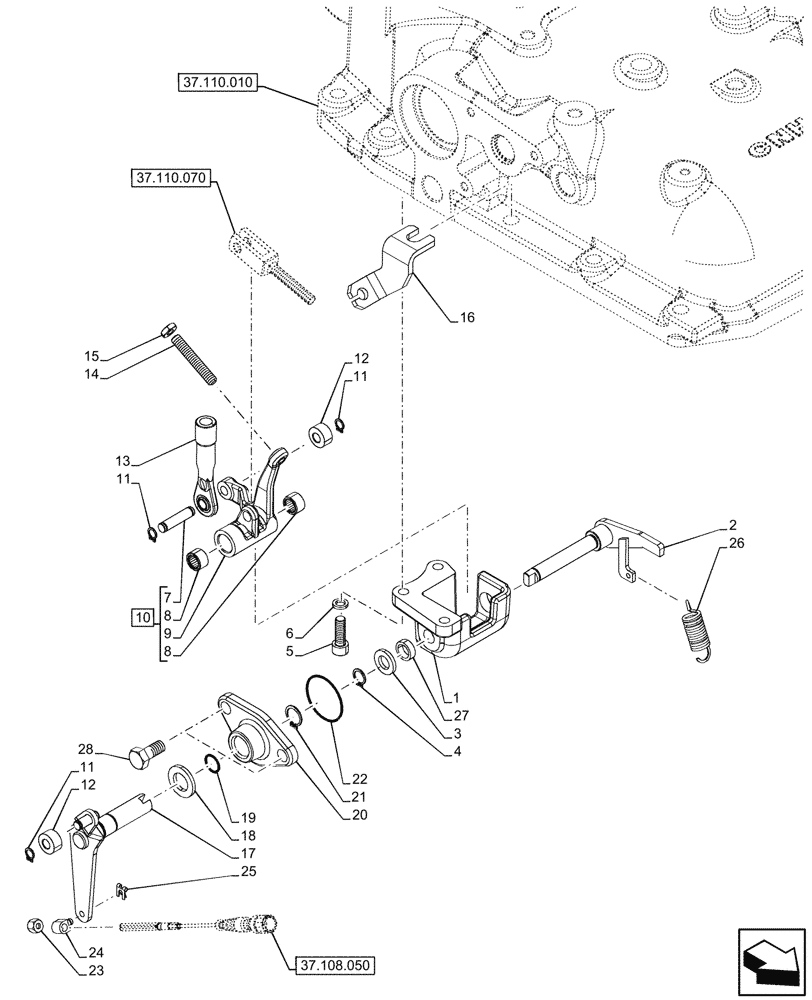

Схема запчастей Case IH FARMALL 110CL - (37.110.060) - VAR - 744833, 759013 - REAR, HYDRAULIC LIFT, CONTROL LEVER, W/ LIFT-O-MATIC PLUS, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.110.070
22
21
8
11
1
7
10
4
14
11
12
26
25
6
24
9
23
27
2
5
17
28
18
11
3
8
16
19
20
12
37.110.010
37.108.050
13
15

Артикул

Название

Примечание

Количество

1

5173366

SUPPORT

1шт.

2

5177261

LEVER

1шт.

3

10520005

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.

4

11066076

SNAP RING,M12, Ext

1шт.

5

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

6

10569370

LOCK WASHER,8.1mm ID x 12.7mm OD x 2mm Thk

3шт.

7

5173360

Pin

1шт.

8

5117138

ROLLER BEARING,12 mm ID x 16 mm OD x 10 mm

2шт.

9

NSS

NOT SOLD SEPARAT

Lever, Incl in 10

1шт.

10

5175907

LEVER

ASSY, Incl 7 - 9

1шт.

11

11065676

SNAP RING,M8, Ext

3шт.

12

5111028

ROLLER,18mm OD x 10mm L

2шт.

13

5176628

BALL JOINT HEAD

1шт.

14

13791321

SET SCREW,Hex Skt, M8 x 50mm, Flat Pt

1шт.

15

16102314

THIN NUT,M8 x 1.25, Cl 04

1шт.

16

47490268

BRACKET

1шт.

17

47464982

LEVER

1шт.

18

10520207

WASHER,M16 x 28 x 3

1шт.

19

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

20

5176916

SUPPORT

1шт.

21

11066476

SNAP RING,M16, Ext

1шт.

22

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

23

12574215

NUT,M6 x 1, Cl 8

1шт.

24

5138330

PIN,5mm OD x 17.5mm L

1шт.

25

11063876

SPRING CLIP,M5 x 4mm

1шт.

26

5176629

SPRING,Extension, 16mm OD x 51mm L

1шт.

27

5173393

SPACER,12.5mm ID x 17mm OD x 5.5mm L

1шт.

28

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 28
