Запчасти Case IH FARMALL 110CL (37.110.020) - VAR - 743523, 744833, 759013 - REAR, HYDRAULIC LIFT, CYLINDER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

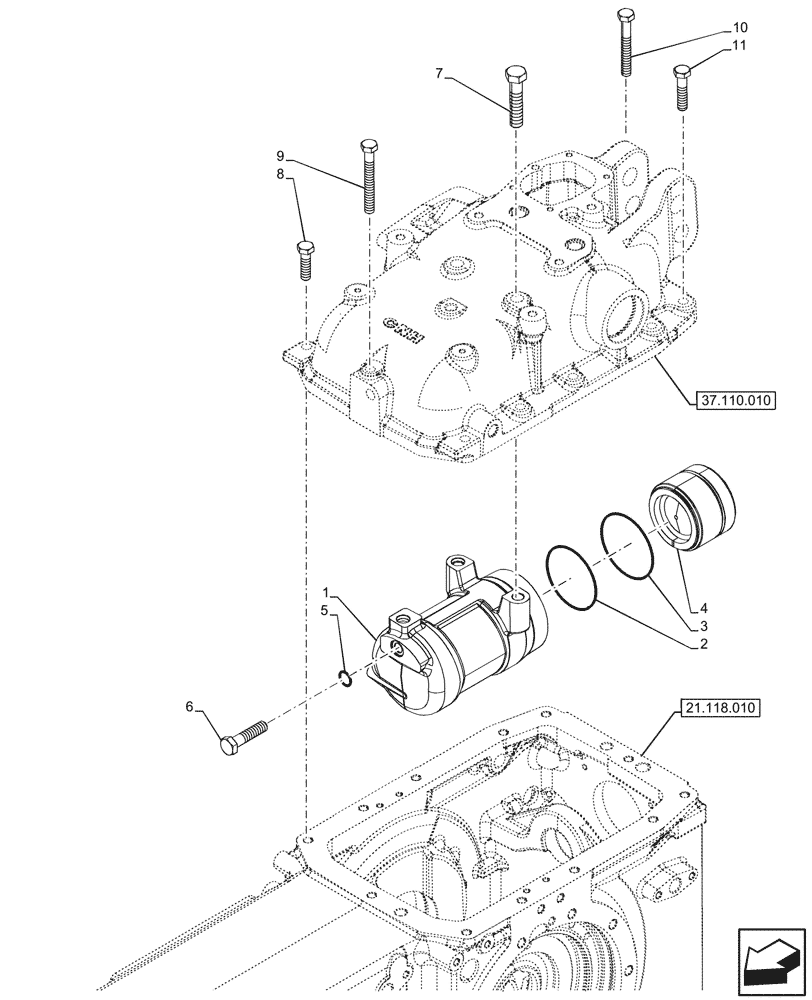

Схема запчастей Case IH FARMALL 110CL - (37.110.020) - VAR - 743523, 744833, 759013 - REAR, HYDRAULIC LIFT, CYLINDER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.110.010
3
4
8
9
5
6
1
11
10
2
7
21.118.010

Артикул

Название

Примечание

Количество

1

5176521

CYLINDER,95.04mm Bore Dia

1шт.

2

14465580

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

3

5176620

O-RING,Quad, 4.2mm Thk x 85.7mm ID

1шт.

4

5176597

PISTON,95mm Bore, 68mm W

1шт.

5

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

6

15977524

BOLT,Hex, M14 x 1.5 x 60mm, Cl 8.8

1шт.

7

15981334

BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9

2шт.

8

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

6шт.

9

15541631

BOLT,Hex, M12 x 1.25 x 100mm, Cl 10.9

1шт.

10

15541524

SCREW,Hex, M12 x 1.25 x 90mm, Cl 8.8

1шт.

11

15540921

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

Выбрано товаров: 11
