Запчасти Case IH FARMALL 110CL (37.110.010) - VAR - 744833, 759013 - REAR, HYDRAULIC LIFT, HOUSING, CYLINDER, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

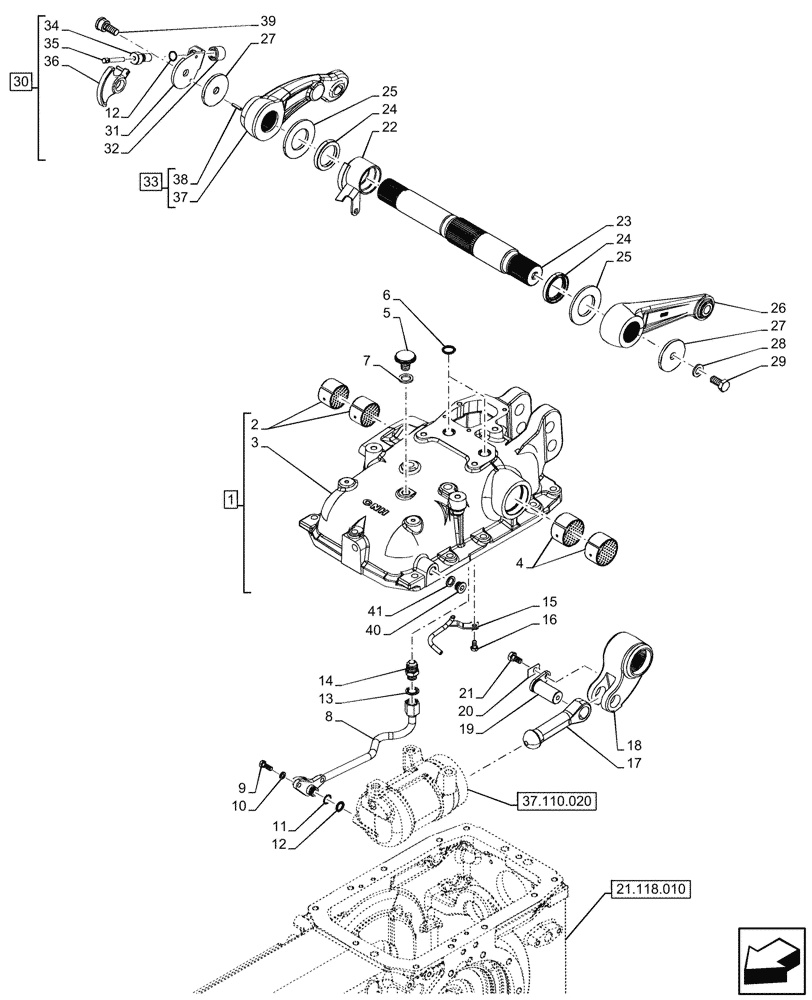

Схема запчастей Case IH FARMALL 110CL - (37.110.010) - VAR - 744833, 759013 - REAR, HYDRAULIC LIFT, HOUSING, CYLINDER, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
29
5
31
30
24
18
14
17
38
23
21
15
33
7
27
11
39
41
4
35
10
13
8
27
37
19
6
20
16
40
25
12
9
12
36
24
28
2
3
26
25
21.118.010
37.110.020
1
34
32
22

Артикул

Название

Примечание

Количество

1

87346203

BODY

1шт.

2

5181871

BUSHING,47.98mm ID x 53.03mm OD x 35mm L

RH

2шт.

3

87343538

BODY

1шт.

4

5181870

BUSHING,55.1mm ID x 60.03mm OD x 35mm L

LH

2шт.

5

83925022

BREATHER,.375-18 NPT

1шт.

6

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

2шт.

7

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

8

47130049

RIGID TUBE

from Distributor to Lift Cylinder

1шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

10

10571770

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

2шт.

11

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

12

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

13

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

1шт.

14

5158806

HYD CONNECTOR,7/8-14 UNF, M18 x 1.5

1шт.

15

5183493

RIGID TUBE

Lubrification

1шт.

16

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

17

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

18

5176633

ARM

1шт.

19

5176612

PIN,60mm L

1шт.

20

14198810

LOCKING PLATE,M10

1шт.

21

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

22

5176643

RING,48mm ID x 63mm OD x 49.5mm Thk

1шт.

23

5176508

CONTROL SHAFT,50/43.5mm ID x 54.4/46.5mm OD x 428mm L, 42/60T

1шт.

24

5125650

OIL SEAL,48mm ID x 65mm OD x 10mm Thk

2шт.

25

5125649

SPACER,47mm ID x 85mm OD x 6mm L

1шт.

26

5176728

ARM

LH

1шт.

27

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

28

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

1шт.

29

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

1шт.

30

87696306

STOP

1шт.

31

87696283

SUPPORT

1шт.

32

47134218

KNOB

1шт.

33

84122687

ARM

1шт.

34

5194677

BOLT,Bolt

1шт.

35

47134219

ADJUSTMENT SCREW,M8 x 1.25 x 63mm L

1шт.

36

87696305

STOP

1шт.

37

87696308

ARM

RH

1шт.

38

10335110

PIN,5mm OD x 25mm L

1шт.

39

5194674

HEX SOC SCREW,Hex, M14 x 1.5 x 47mm

1шт.

40

10273111

PLUG,M18 x 1.5 x 13

1шт.

41

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

Выбрано товаров: 41
