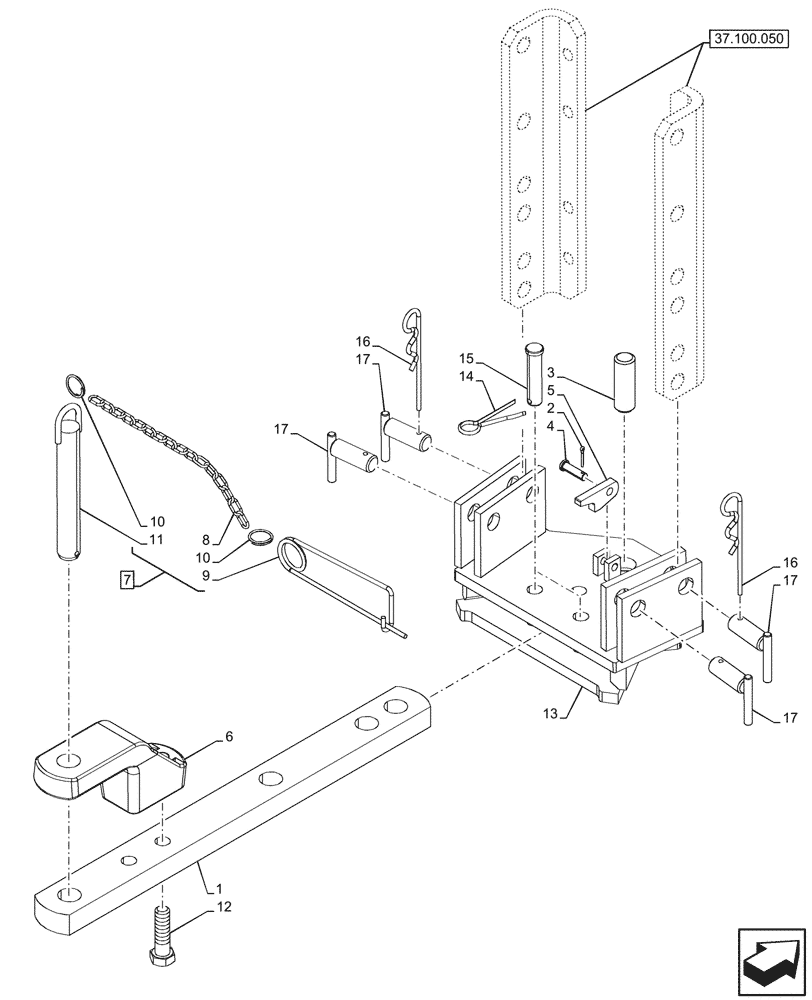

Запчасти Case IH FARMALL 110CL (37.100.140) - VAR - 338247 - DRAWBAR (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5177291

DRAWBAR,641mm L x 60mm W x 30mm Thk

Grey

1шт.

2

10796404

COTTER PIN,M3.2 x 18

1шт.

3

5176981

PIN,28mm OD x 104mm L

1шт.

4

5130620

PIN,10mm OD x 34mm L

1шт.

5

5130621

LEVER

1шт.

6

5151269

CLEVIS,220mm L x 110mm W x 30mm Thk, 80mm Offset

Grey

1шт.

7

15984534

BOLT,Hex, M18 x 1.5 x 65mm, Cl 10.9

2шт.

8

5163732

PIN,32mm OD x 182mm L

ASSY, Incl 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

Tow Hitch, Incl in 8

1шт.

10

5152004

HAIR PIN COTTER,195mm L

1шт.

11

44901192

SNAP RING,25mm ID

1шт.

12

5155491

PIVOT

1шт.

13

5112606

COTTER PIN,2.5mm OD x 66.5mm L

M3.5 x 75

2шт.

14

5176972

PIN,18mm OD x 82mm L

18mm OD x 82mm L

2шт.

15

5188411

SPRING,32mm OD x 140mm L

M5 x 140

4шт.

16

47130503

PIN,22mm OD x 70mm L

22mm OD x 60mm L

4шт.

17

47129762

SUPPORT

1шт.
