Запчасти Case IH FARMALL 110CL (35.204.990) - VAR - 759022, 759023 - 2 REMOTE CONTROL VALVES, DIVERTER, CAB (35) - HYDRAULIC SYSTEMS

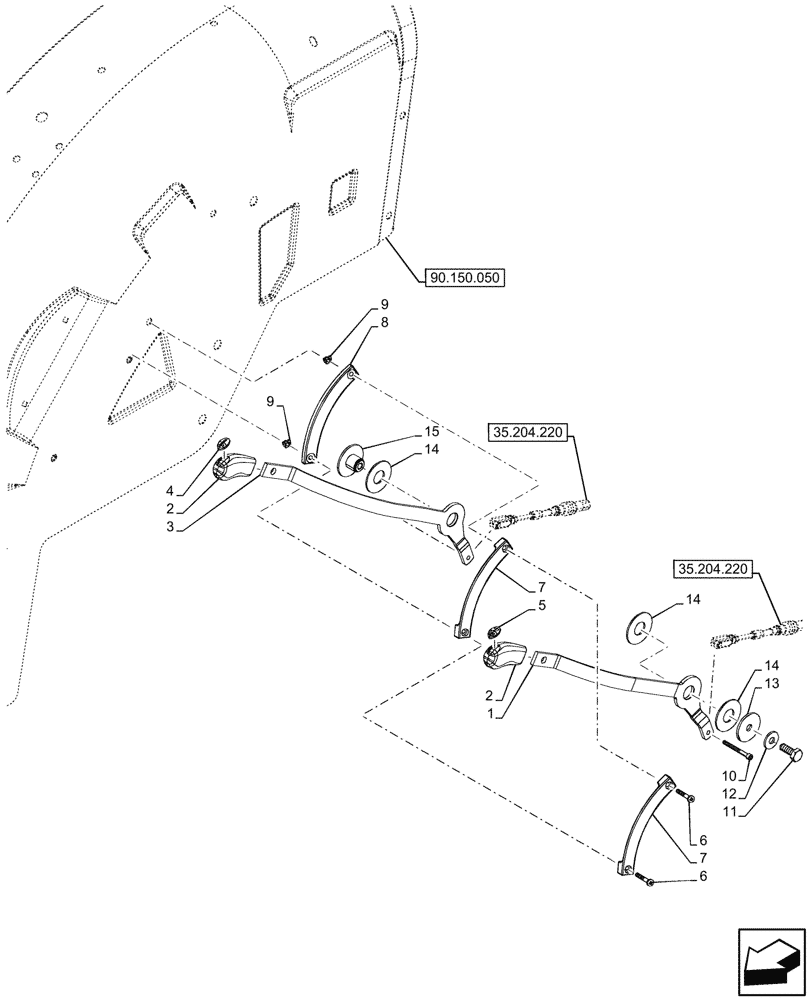

Схема запчастей Case IH FARMALL 110CL - (35.204.990) - VAR - 759022, 759023 - 2 REMOTE CONTROL VALVES, DIVERTER, CAB (35) - HYDRAULIC SYSTEMS
90.150.050
14
9
12
2
13
14
5
1
7
7
11
6
6
10
8
14
4
9
2
35.204.220
35.204.220
15
3

Артикул

Название

Примечание

Количество

1

84497607

LEVER

2nd Command, Black

1шт.

2

47381094

KNOB,Black

2шт.

3

84497606

LEVER

1st Command, Black

1шт.

4

87698505

DATA PLAQUE

For Green Remote

1шт.

5

87698506

DATA PLAQUE

For Blu Remote

1шт.

6

13275024

SCREW,M5 x 40mm, Cl 8.8

2шт.

7

5172844

JOINING ELEMENT

2шт.

8

5172842

JOINING ELEMENT

1шт.

9

14197891

NUT,M5 x .8, Cage

2шт.

10

14304724

HEX SOC SCREW,M5 x 50mm, Cl 8.8, Full Thd

1шт.

11

11227924

BOLT,Hex, M10 x 1.25 x 28, 8.8, Full Thd

1шт.

12

11190674

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD

1шт.

13

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

1шт.

14

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

3шт.

15

87378227

PIN,21mm OD x 18.3mm L

1шт.

Выбрано товаров: 15
