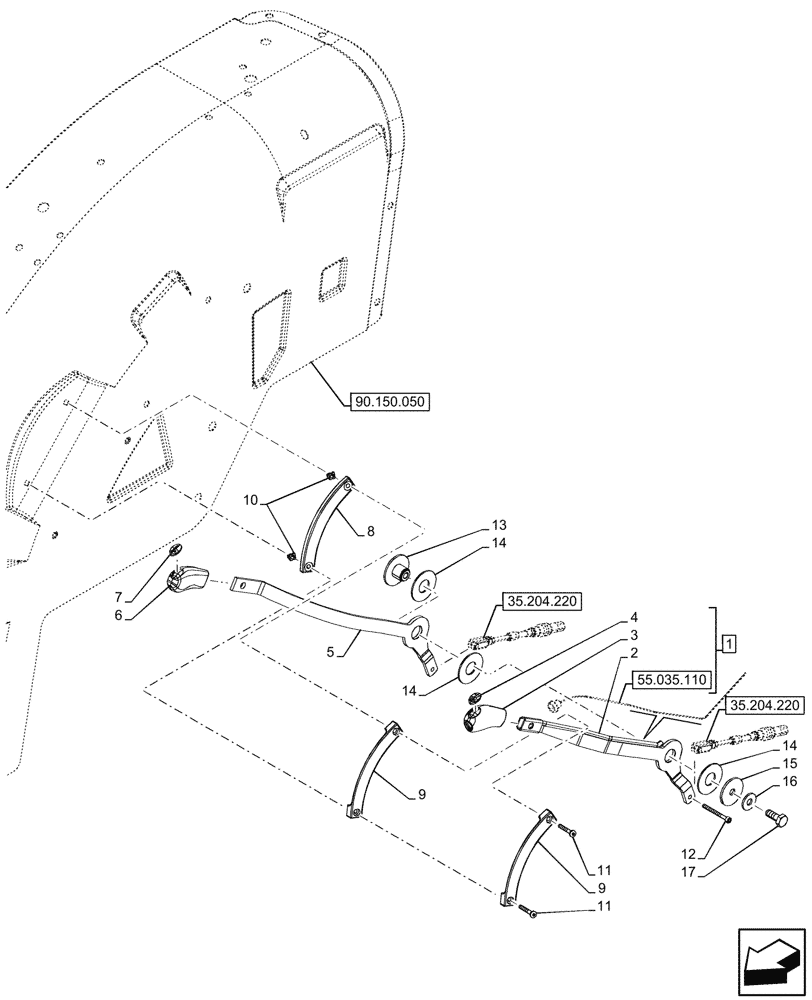

Запчасти Case IH FARMALL 110CL (35.204.980) - VAR - 759024 - 2 REMOTE CONTROL VALVES, W/ DIVERTER, CAB (35) - HYDRAULIC SYSTEMS

1

47964526

LEVER

ASSY, Incl 2 - 4

1шт.

See also Lever Components in Figure 55.035.110

1шт.

2

84497610

LEVER

2nd Command

1шт.

3

84121634

KNOB

1шт.

4

87698506

DATA PLAQUE

For Blu Remote

1шт.

5

84497606

LEVER

1st Command, Black

1шт.

6

47381094

KNOB,Black

1шт.

7

87698505

DATA PLAQUE

For Green Remote

1шт.

8

5172842

JOINING ELEMENT

1шт.

9

5172844

JOINING ELEMENT

2шт.

10

14197891

NUT,M5 x .8, Cage

2шт.

11

13275024

SCREW,M5 x 40mm, Cl 8.8

2шт.

12

14304724

HEX SOC SCREW,M5 x 50mm, Cl 8.8, Full Thd

1шт.

13

87378227

PIN,21mm OD x 18.3mm L

1шт.

14

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

3шт.

15

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

1шт.

16

11190674

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD

1шт.

17

11227924

BOLT,Hex, M10 x 1.25 x 28, 8.8, Full Thd

1шт.
