Запчасти Case IH FARMALL 110CL (35.204.910) - VAR - 759021 - MID-MOUNT CONTROL VALVE, LINES, STABILIZER, 80LPM, CAB (35) - HYDRAULIC SYSTEMS

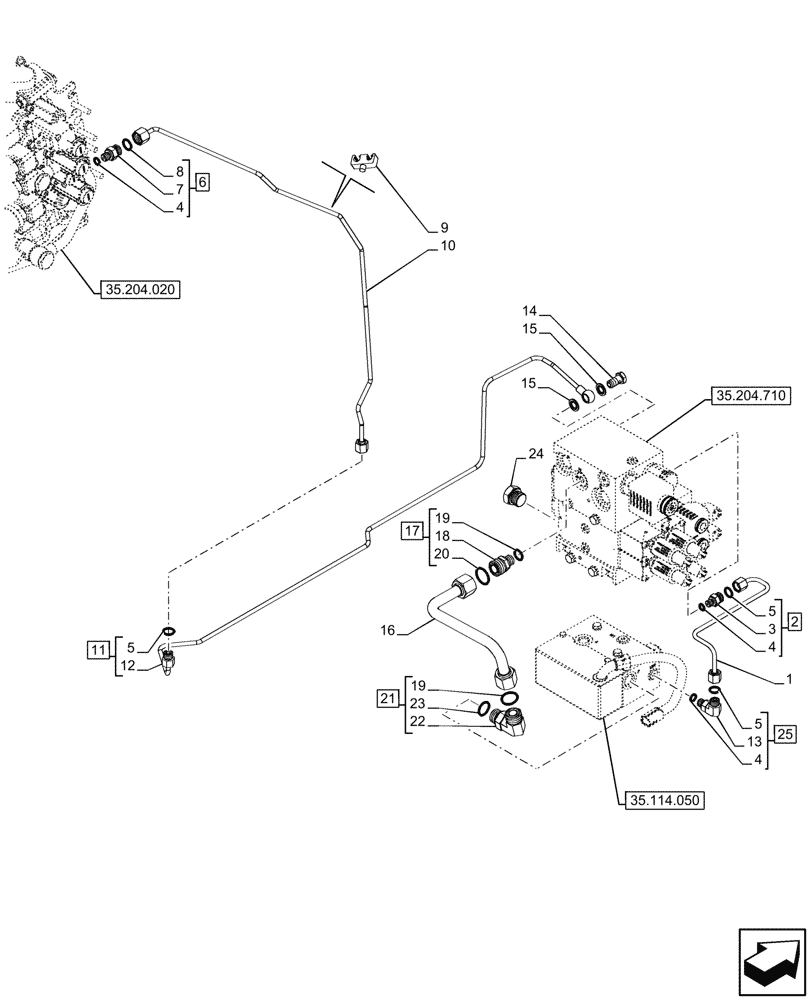

Схема запчастей Case IH FARMALL 110CL - (35.204.910) - VAR - 759021 - MID-MOUNT CONTROL VALVE, LINES, STABILIZER, 80LPM, CAB (35) - HYDRAULIC SYSTEMS
35.114.050
23
13
9
19
4
10
22
5
5
5
19
24
17
6
25
18
12
21
4
14
7
16
2
11
15
4
1
8
15
20
3
35.204.710
35.204.020

Артикул

Название

Примечание

Количество

1

48084342

Delivery Forward

PIPE

1шт.

2

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 3, 4 (Qty 1), 5 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

4

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

3шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

6

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 4 (Qty 1), 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

14575480

CLIP

1шт.

10

48016954

PIPE

Pilot from Stabilizer to Remotes Valve

1шт.

11

48090843

ASSY, Mid Mount Valve to Remote, Incl 5 (Qty 1), 12

PIPE

1шт.

12

NSS

NOT SOLD SEPARAT

Pipe, Incl in 11

1шт.

13

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 25

1шт.

14

10185011

BANJO BOLT,M12 x 1.25 x 23mm

1шт.

15

87665414

SEAL

2шт.

16

47974775

PIPE

Delivery to Hydraulic Stabilizer

1шт.

17

87389189

HYD CONNECTOR,12.5 - 14 ORFS x 7 - 14 ORB

ASSY, Incl 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 17

1шт.

19

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

21

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Incl 22, 23

1шт.

22

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 21

1шт.

23

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

24

87773529

PLUG,Hex, M22 x 1.5

1шт.

25

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 13

1шт.

Выбрано товаров: 25
