Запчасти Case IH FARMALL 110CL (35.204.890) - VAR - 743970 - MID-MOUNT CONTROL VALVE, LINES, W/ TRAILER BRAKE VALVE, 64LPM, CAB (35) - HYDRAULIC SYSTEMS

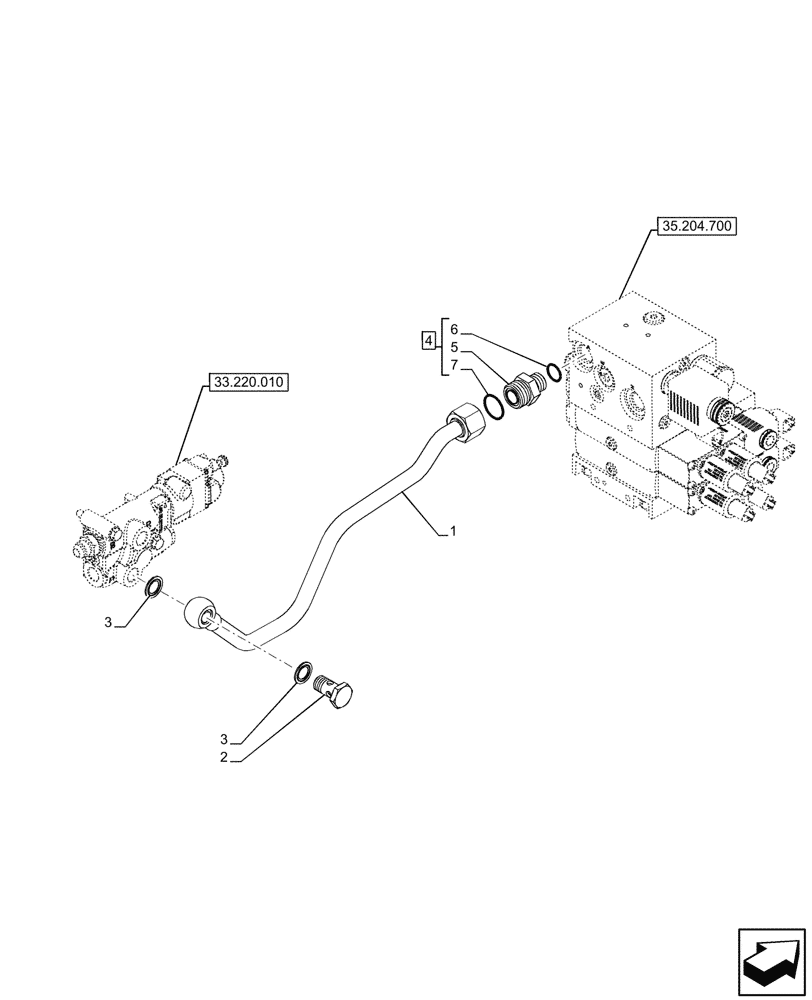

Схема запчастей Case IH FARMALL 110CL - (35.204.890) - VAR - 743970 - MID-MOUNT CONTROL VALVE, LINES, W/ TRAILER BRAKE VALVE, 64LPM, CAB (35) - HYDRAULIC SYSTEMS
35.204.700
3
2
7
5
1
3
4
6
33.220.010

Артикул

Название

Примечание

Количество

1

47974789

PIPE

From Trailer Brake valve to Stalilizer

1шт.

2

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

3

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

4

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Incl 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

7

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 7
