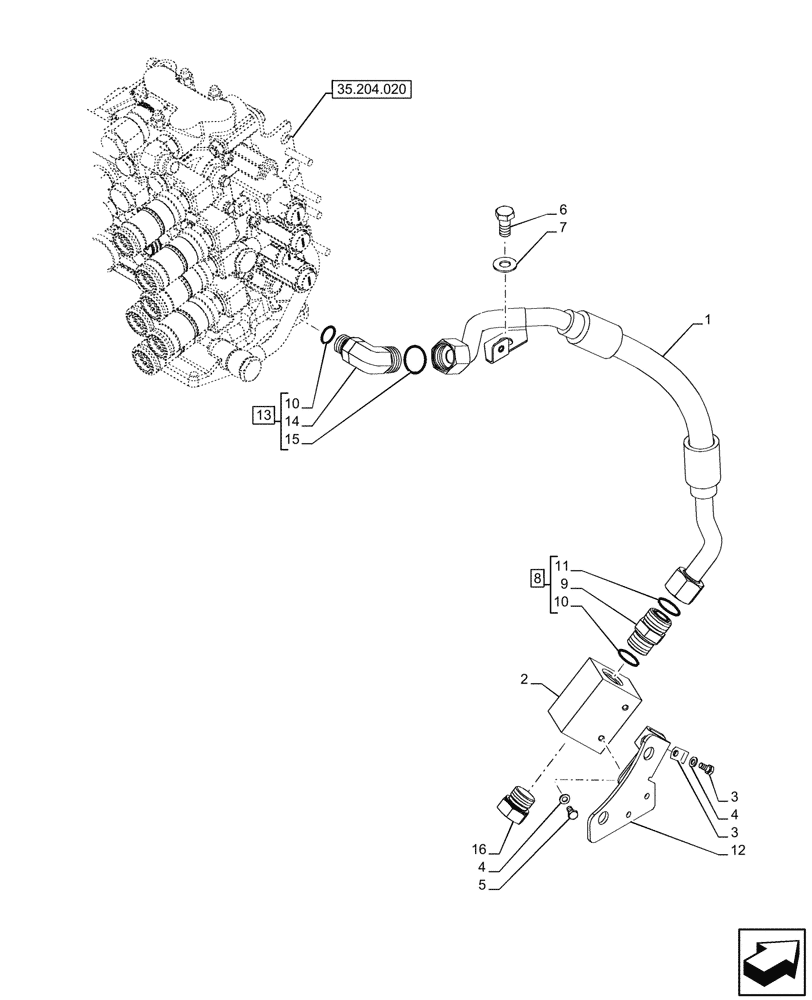

Запчасти Case IH FARMALL 110CL (35.204.860) - VAR - 743915 - DELIVERY PIPE, W/O MID-MOUNT CONTROL VALVE, 80LPM, CAB (35) - HYDRAULIC SYSTEMS

1

48036000

PIPE

Delivery from Connetor Remote Valve to Block

1шт.

2

47663312

BLOCK

1шт.

3

10418101

RETAINER COLLAR,6mm, Coat, P Type

1шт.

4

11194379

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD

3шт.

5

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

3шт.

6

15540321

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

8

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

ASSY, Incl 9, 10 (Qty 1), 11

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

11

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

12

47676583

BRACKET

1шт.

13

86579695

90 ELBOW,90 Degree, 1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Incl 10 (Qty 1), 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 13

1шт.

15

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

16

86632608

PLUG,M27 x 2 ORB

1шт.
