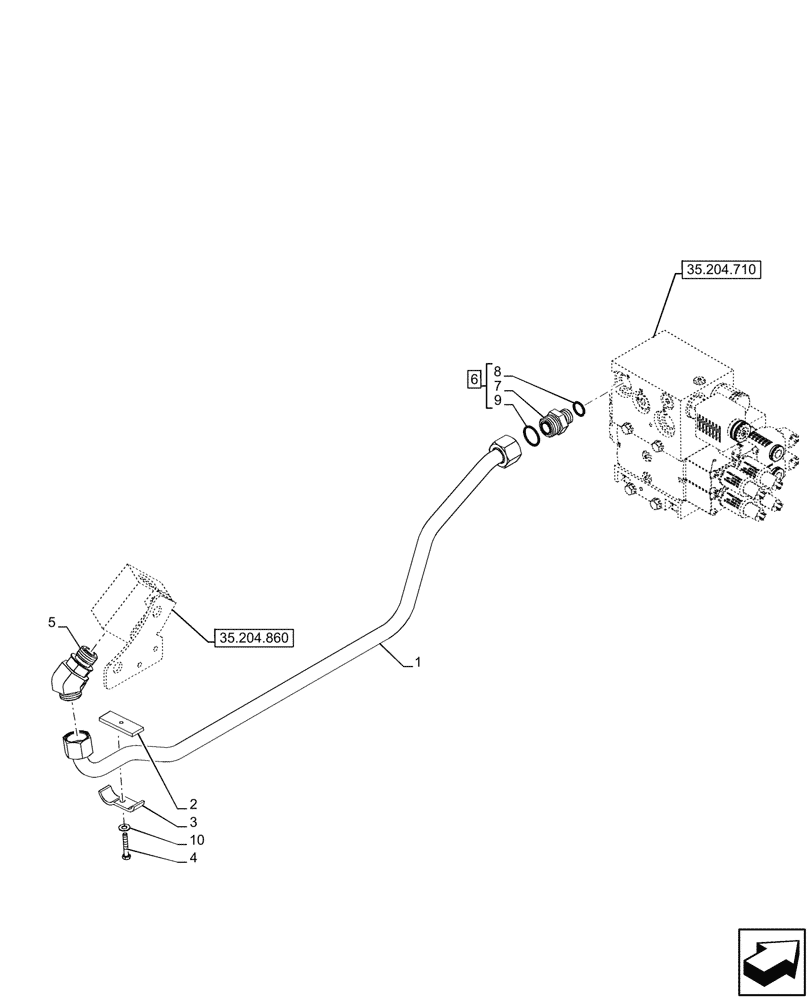

Запчасти Case IH FARMALL 110CL (35.204.850) - VAR - 759021 - DELIVERY PIPE, MID-MOUNT CONTROL VALVE, LINES, 80LPM, CAB (35) - HYDRAULIC SYSTEMS

1

48090845

Delivery from Bloc, Mid Mount Valve 80L

PIPE

1шт.

2

5179404

SUPPORT

1шт.

3

84591661

BRACKET

1шт.

4

15212521

BOLT,Hex, M6 x 35mm, Cl 8.8, Full Thd

1шт.

5

86639055

45 ELBOW,45 Degree, 1 3/16"-12 ORFS x M27 x 2 ORB

1шт.

6

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

9

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

10

11194379

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD

1шт.
