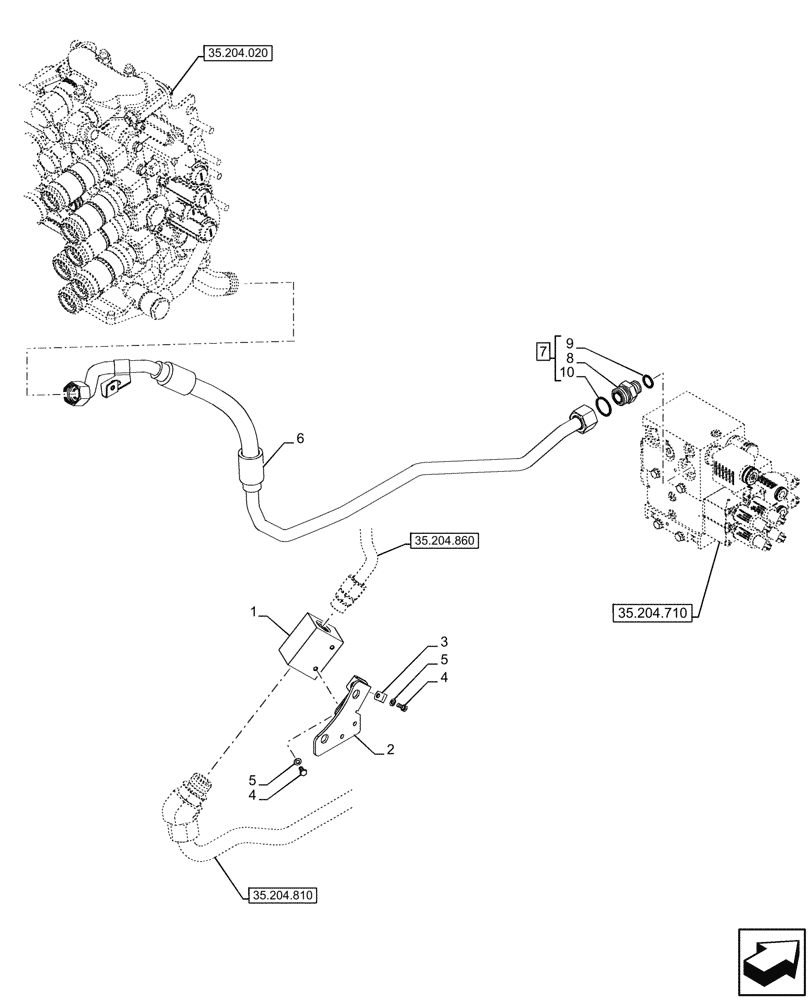

Запчасти Case IH FARMALL 110CL (35.204.820) - VAR - 759021 - MID-MOUNT CONTROL VALVE, DELIVERY PIPE, CAB (35) - HYDRAULIC SYSTEMS

1

47663312

BLOCK

80L

1шт.

2

47676583

BRACKET

1шт.

3

10418101

RETAINER COLLAR,6mm, Coat, P Type

1шт.

4

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

3шт.

5

11194379

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD

3шт.

6

48090851

Delivery from Mid Mount Valve 80L to remote

PIPE

1шт.

7

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Incl 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

9

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
