Запчасти Case IH FARMALL 110CL (35.204.810) - VAR - 743915 - DELIVERY PIPE, W/O MID-MOUNT CONTROL VALVE, W/O TRAILER BRAKE, 80LPM, CAB (35) - HYDRAULIC SYSTEMS

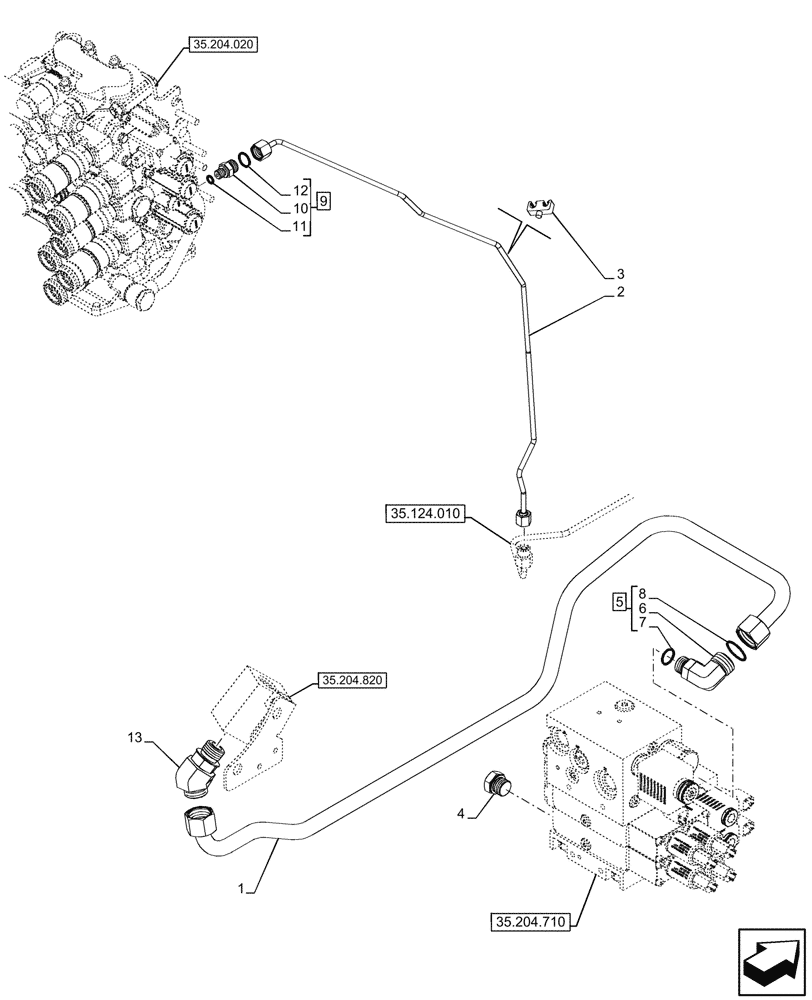

Схема запчастей Case IH FARMALL 110CL - (35.204.810) - VAR - 743915 - DELIVERY PIPE, W/O MID-MOUNT CONTROL VALVE, W/O TRAILER BRAKE, 80LPM, CAB (35) - HYDRAULIC SYSTEMS
35.124.010
1
7
11
2
10
8
3
6
4
13
12
5
9
35.204.820
35.204.710
35.204.020

Артикул

Название

Примечание

Количество

1

48001866

PIPE

Delivery from T-Block

1шт.

2

48016954

PIPE

Pilot from Stabilizer to Remote

1шт.

3

14575480

CLIP

1шт.

4

87773529

PLUG,Hex, M22 x 1.5

1шт.

5

86579695

90 ELBOW,90 Degree, 1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Incl 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 5

1шт.

7

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

9

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

11

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

86639055

45 ELBOW,45 Degree, 1 3/16"-12 ORFS x M27 x 2 ORB

1шт.

Выбрано товаров: 13
