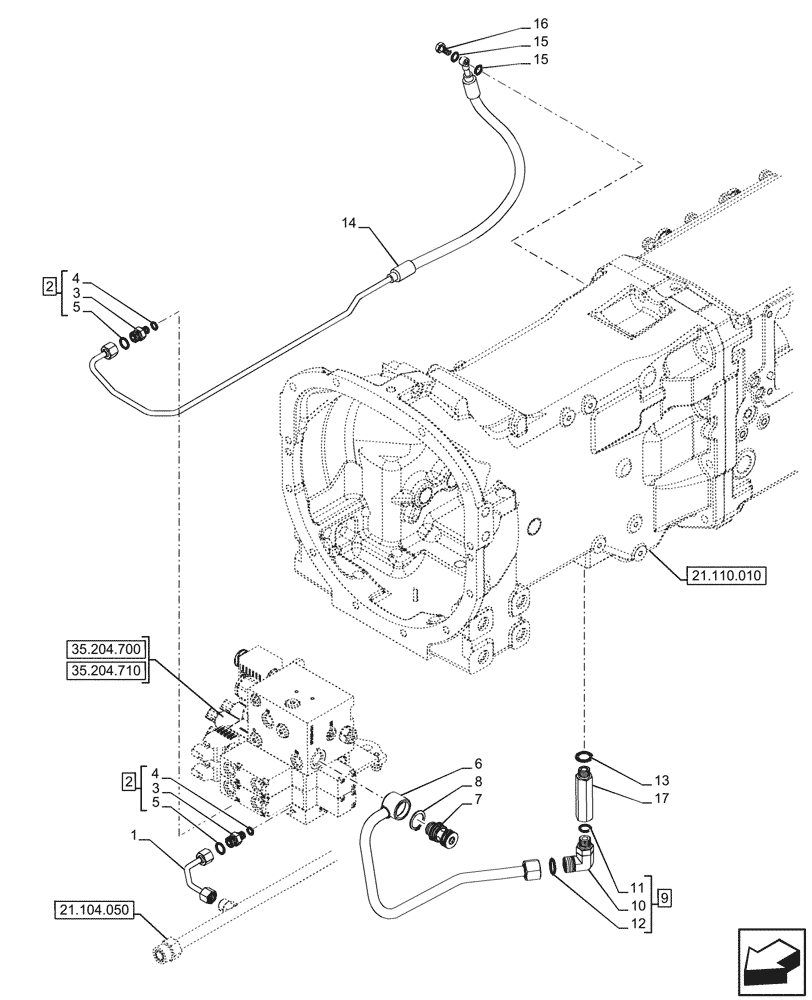

Запчасти Case IH FARMALL 110CL (35.204.770) - VAR - 743970, 759021 - MID-MOUNT CONTROL VALVE, PIPE, CAB (35) - HYDRAULIC SYSTEMS

1

48084335

Pressur Mid Mount Valve

PIPE

1шт.

2

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

2шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

6

48084332

Discharge from Mid Mount Valve

PIPE

1шт.

7

47530975

BANJO BOLT,M22 x 1.5

1шт.

8

300629

SNAP RING,M28, Ext

1шт.

9

86579693

ELBOW,90 Degree, 1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

1шт.

11

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

12

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

87665417

SEAL,18.1mm ID x 28mm OD x 2.5mm Thk

1шт.

14

47974763

PIPE

Return, Mid Mount Valve Drain

1шт.

15

14330260

SEALING WASHER,M8.2 x 12 x 1

2шт.

16

11904011

BANJO BOLT,M8 x 1 x 16mm

1шт.

17

47914502

SPACER,Hex, M18 x 1.5 x 95.5mm L

1шт.
