(35.204.760) - VAR - 743970, 759021 - MID-MOUNT CONTROL VALVE, DUST CAP, SUPPORT, CAB

Запчасти Case IH FARMALL 110CL (35.204.760) - VAR - 743970, 759021 - MID-MOUNT CONTROL VALVE, DUST CAP, SUPPORT, CAB (35) - HYDRAULIC SYSTEMS

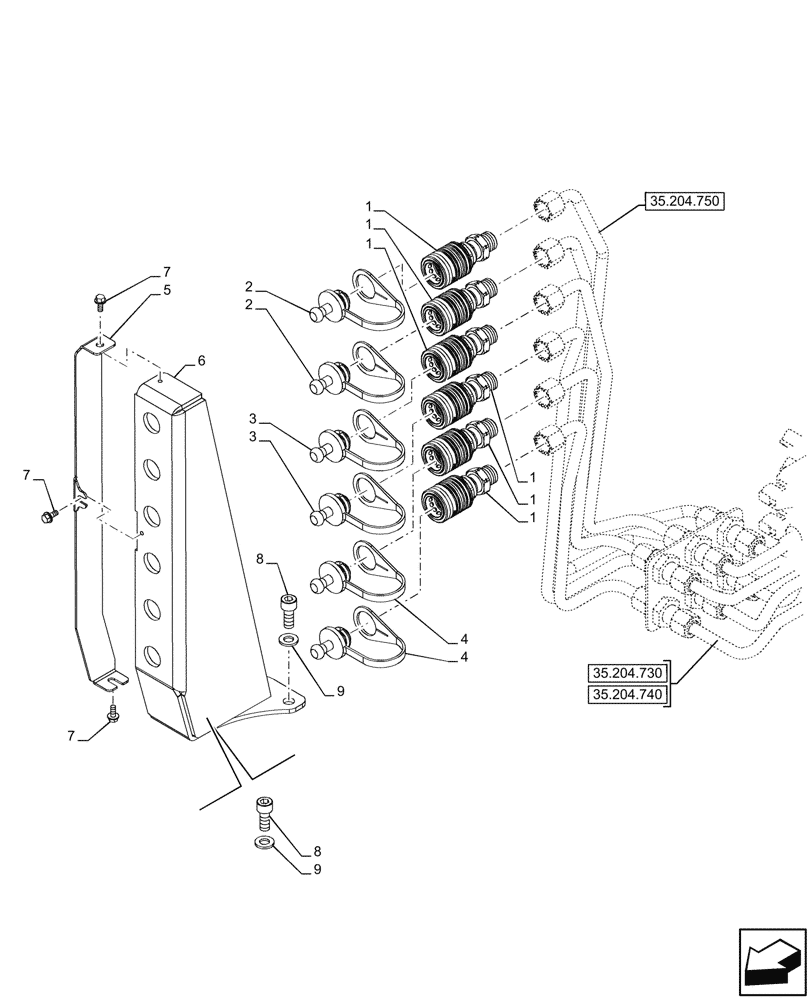

Схема запчастей Case IH FARMALL 110CL - (35.204.760) - VAR - 743970, 759021 - MID-MOUNT CONTROL VALVE, DUST CAP, SUPPORT, CAB (35) - HYDRAULIC SYSTEMS
35.204.740
1
3
7
4
8
3
7
4
5
2
9
1
1
1
9
1
7
2
8
6
35.204.750
1
35.204.730
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48001307

COUPLING, QUICK, FEM,Hex, 30mm ID x 38mm OD x 85.8mm L

Female

6шт.

2

5186723

DUST CAP,24mm, Black

Black

2шт.

3

5179580

PLUG,24mm, Red

Red

2шт.

4

5179579

PLUG,24mm, Yellow

Yellow

2шт.

5

48066006

SUPPORT

1шт.

6

48080757

SUPPORT

1шт.

7

86511838

BOLT,Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd

3шт.

8

14420131

HEX SOC SCREW,M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

9

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

3шт.
