(35.204.630) - VAR - 759023, 759024 - 3 REMOTE CONTROL VALVES, LINES, CAB

Запчасти Case IH FARMALL 110CL (35.204.630) - VAR - 759023, 759024 - 3 REMOTE CONTROL VALVES, LINES, CAB (35) - HYDRAULIC SYSTEMS

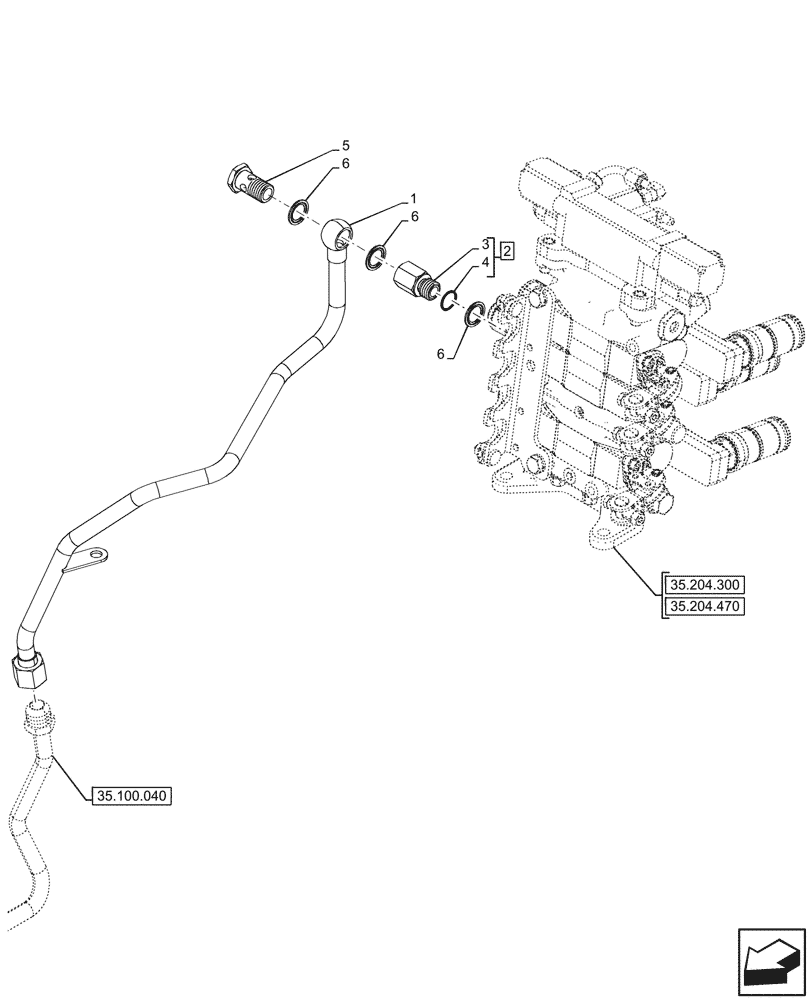

Схема запчастей Case IH FARMALL 110CL - (35.204.630) - VAR - 759023, 759024 - 3 REMOTE CONTROL VALVES, LINES, CAB (35) - HYDRAULIC SYSTEMS
35.204.300
6
1
6
5
2
6
3
4
35.100.040
35.204.470
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186139

RIGID TUBE

Delivery Pipe

1шт.

2

5188525

REDUCER,M22 x 1.5 x M22 x 1.5

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Reducer, Incl in 2

1шт.

4

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

5

5182095

BANJO BOLT,M22 x 1.5 x 47mm

1шт.

6

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

3шт.
