Запчасти Case IH FARMALL 110CL (35.204.620) - VAR - 759024 - REMOTE CONTROL VALVE, DIVERTER, CAB (35) - HYDRAULIC SYSTEMS

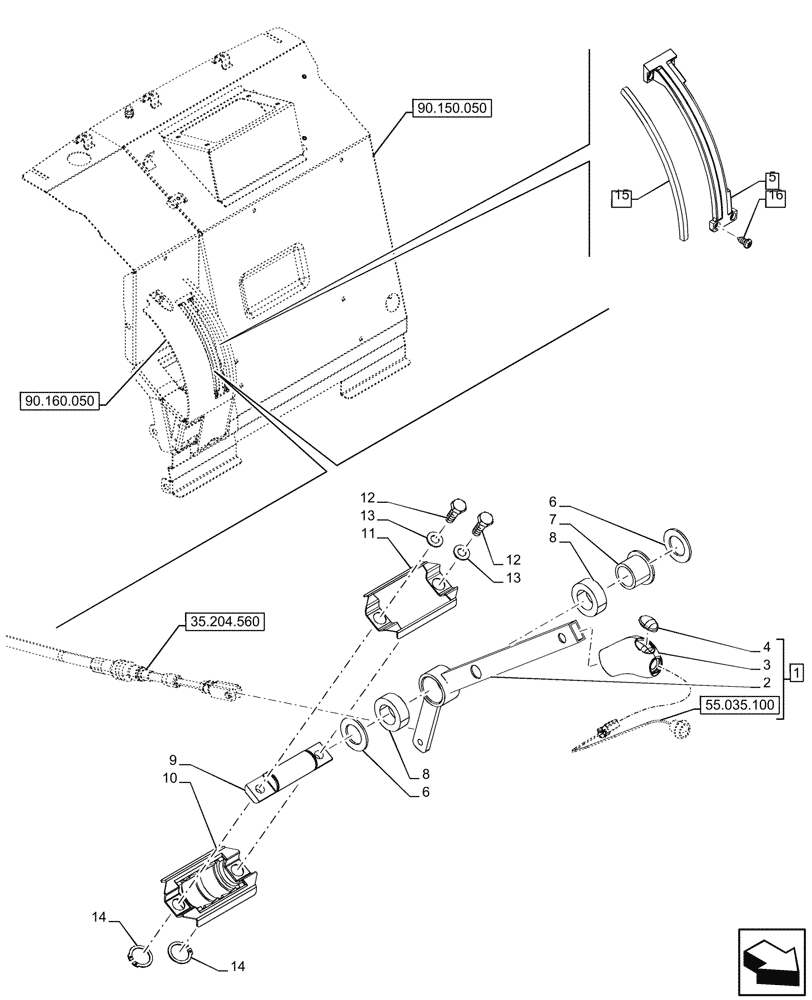

Схема запчастей Case IH FARMALL 110CL - (35.204.620) - VAR - 759024 - REMOTE CONTROL VALVE, DIVERTER, CAB (35) - HYDRAULIC SYSTEMS
55.035.100
8
16
12
9
10
2
13
7
4
15
11
14
12
6
5
1
8
6
14
13
3
90.160.050
90.150.050
35.204.560

Артикул

Название

Примечание

Количество

1

47964531

LEVER

ASSY, Incl 2 - 4

1шт.

See also Lever Components in Figure 55.035.100

1шт.

2

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.

3

87698516

DATA PLAQUE

For Ginger Remote

1шт.

4

84121634

KNOB

1шт.

5

5175803

SECTOR

1шт.

6

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

2шт.

7

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

1шт.

8

5154841

SPACER,21mm ID x 35mm OD x 12mm L

2шт.

9

5133375

PIN,20mm OD x 100mm L

1шт.

10

84282185

GASKET,100mm L

1шт.

11

5170661

COVER

1шт.

12

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

14

11066876

SNAP RING,M20, Ext

2шт.

15

5176600

BRACKET

1шт.

16

15958701

SCREW,Pan Hd, M5 x 3 x 12mm

4шт.

Выбрано товаров: 17
