Запчасти Case IH FARMALL 110CL (35.204.610) - VAR - 759025 - 3 REMOTE CONTROL VALVES, ELECTRO-HYDRAULIC, COMPONENTS, CAB (35) - HYDRAULIC SYSTEMS

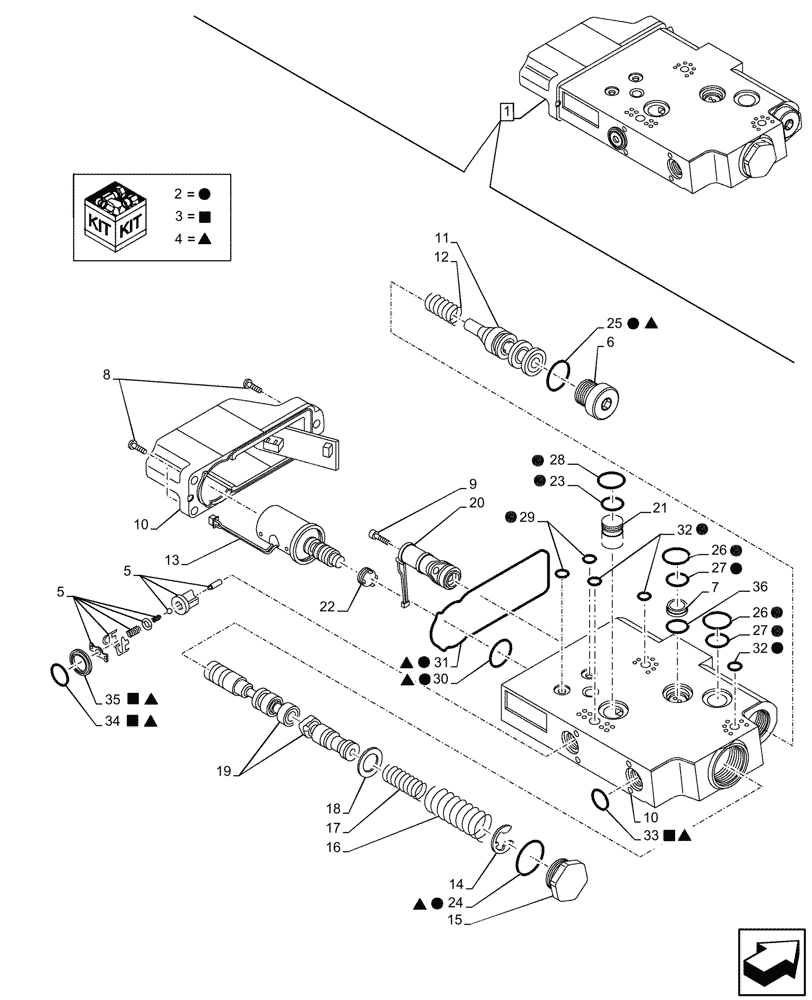

Схема запчастей Case IH FARMALL 110CL - (35.204.610) - VAR - 759025 - 3 REMOTE CONTROL VALVES, ELECTRO-HYDRAULIC, COMPONENTS, CAB (35) - HYDRAULIC SYSTEMS
3
3
27
20
3
32
35
7
16
3
12
7
10
3
26
22
1
3
6
7
29
11
25
8
7
33
19
31
3
5
24
9
36
15
4
7
34
10
3
3
3
14
27
18
2
5
5
5
26
32
3
3
23
13
7
7
28
21
17
30
5
3
3

Артикул

Название

Примечание

Количество

1

47659030

HYDRAULIC VALVE

ASSY, Incl 2 - 36

3шт.

2

47554912

SEAL KIT

Incl 23 - 32

3шт.

3

84125422

SEAL KIT

Incl 33 - 35

3шт.

4

84270831

SEAL KIT

Incl 24, 25, 30, 31, 33 - 35

3шт.

5

84270832

KIT

Valve

3шт.

6

47554943

PLUG

3шт.

7

47893379

VALVE

3шт.

8

84340200

SCREW,Phillips Drive, Pan HD, M5 x 18mm, Cl 10.9

9шт.

9

14304631

HEX SOC SCREW,M5 x 14mm, Cl 10.9, Full Thd

6шт.

10

NSS

NOT SOLD SEPARAT

Valve Housing, Incl in 1

3шт.

11

NSS

NOT SOLD SEPARAT

Valve Spool, Incl in 1

3шт.

12

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

3шт.

13

NSS

NOT SOLD SEPARAT

Solenoid, Incl in 1

3шт.

14

NSS

NOT SOLD SEPARAT

Locking Washer, Incl in 1

3шт.

15

NSS

NOT SOLD SEPARAT

Screw Plug, Incl in 1

3шт.

16

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

3шт.

17

47893394

COMPRESSION SPRING

3шт.

18

NSS

NOT SOLD SEPARAT

Spring Disk, Incl in 1

3шт.

19

NSS

NOT SOLD SEPARAT

Valve Spool, Incl in 1

3шт.

20

NSS

NOT SOLD SEPARAT

Coil, Incl in 1

3шт.

21

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

3шт.

22

NSS

NOT SOLD SEPARAT

Strainer, Incl in 1

3шт.

23

NSS

NOT SOLD SEPARAT

O-Ring, 14.8 x 1, Incl in 2, Incl in 1

3шт.

24

NSS

NOT SOLD SEPARAT

O-Ring, 29.4 x 2.1 HNBR, Incl in 2 and Incl in 4, Incl in 1

3шт.

25

NSS

NOT SOLD SEPARAT

O-Ring, 19.4 x 2.1 HNBR, Incl in 2 and Incl in 4, Incl in 1

3шт.

26

NSS

NOT SOLD SEPARAT

Support Ring, 24.5 x 2.15, Incl in 2, Incl in 1

6шт.

27

NSS

NOT SOLD SEPARAT

O-Ring, 18 x 2.5 HNBR, Incl in 2, Incl in 1

6шт.

28

NSS

NOT SOLD SEPARAT

O-Ring, 20 x 2.5 HNBR, Incl in 2, Incl in 1

3шт.

29

NSS

NOT SOLD SEPARAT

O-Ring, 8 x 2 HNBR, Incl in 2, Incl in 1

6шт.

30

NSS

NOT SOLD SEPARAT

O-Ring, 23 x 2.5 HNBR, Incl in 2 and Incl in 4, Incl in 1

3шт.

31

NSS

NOT SOLD SEPARAT

Sealing Frame, Incl in 2 and Incl in 4, Incl in 1

3шт.

32

NSS

NOT SOLD SEPARAT

Shim, 11.8 x 0.04, Incl in 2, Incl in 1

9шт.

33

NSS

NOT SOLD SEPARAT

O-Ring, 15 x 2.5 HNBR, Incl in 3 and Incl in 4, Incl in 1

3шт.

34

NSS

NOT SOLD SEPARAT

O-Ring, 17 x 2.5 HNBR, Incl in 3 and Incl in 4, Incl in 1

3шт.

35

NSS

NOT SOLD SEPARAT

Washer, Incl in 3 and Incl in 4, Incl in 1

3шт.

36

84279974

VALVE POPPET

3шт.

Выбрано товаров: 36
