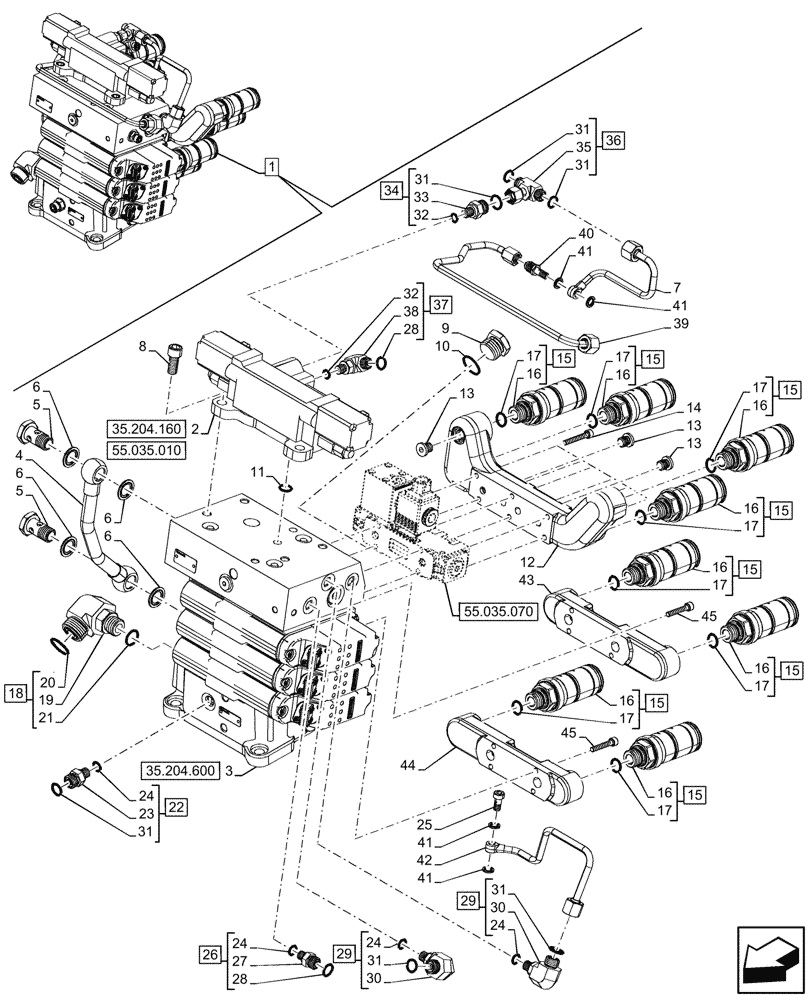

Запчасти Case IH FARMALL 110CL (35.204.590) - VAR - 759025 - 3 REMOTE CONTROL VALVES, ELECTRO-HYDRAULIC, COMPONENTS, CAB (35) - HYDRAULIC SYSTEMS

1

47910002

DISTRIBUTOR

ASSY, Electro Hydraulic Superflow, Incl 2 - 45

1шт.

See also Distributor Components in Figure 55.035.140

1шт.

2

82011395

HYDRAULIC VALVE

ASSY, Draft

1шт.

3

47912701

DISTRIBUTOR

ASSY

1шт.

4

47657340

PIPE

Delivery Pipe, from Remote to Lift

1шт.

5

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

6

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

7

47657707

PIPE

from Distributor to Diverter

1шт.

8

81864028

HEX SOC SCREW,7/16" - 14 x 1", Gr 8

4шт.

9

83957506

PLUG,3/4"

1шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

272344

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

12

47666703

HYDRAULIC MANIFOLD

Diverter

1шт.

13

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

3шт.

14

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

6шт.

15

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

ASSY, Incl 16, 17

8шт.

16

NSS

NOT SOLD SEPARAT

Coupling, Incl in 15

8шт.

17

14438085

O-RING,19.3mm ID x 2.4mm

8шт.

18

86579695

90 ELBOW,90 Degree, 1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Incl 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

Elbow, Incl in 18

1шт.

20

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

21

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

22

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 23, 24 (Qty 1), 31 (Qty 1)

1шт.

23

NSS

NOT SOLD SEPARAT

Connector, Incl in 22

1шт.

24

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

4шт.

25

5175070

BANJO BOLT,M8 x 1.25 x 24mm

1шт.

26

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 24 (Qty 1), 27, 28 (Qty 1)

1шт.

27

NSS

NOT SOLD SEPARAT

Connector, Incl in 26

1шт.

28

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

29

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 24 (Qty 2), 30, 31 (Qty 2)

2шт.

30

NSS

NOT SOLD SEPARAT

Elbow, Incl in 29

2шт.

31

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

32

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

33

NSS

NOT SOLD SEPARAT

Connector, Incl in 34

1шт.

34

9840330

HYD CONNECTOR,11/16" - 16 ORFS x 7/16" - 20 ORB

ASSY, Incl 31 (Qty 1), 32, 33

1шт.

35

NSS

NOT SOLD SEPARAT

Tee, Incl in 36

1шт.

36

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

ASSY, Incl 31 (Qty 2), 35

1шт.

37

87681199

90 ELBOW,Hex, 1/4, 9/16-18, 7/16-20

ASSY, Incl 28 (Qty 1), 32 (Qty 1), 38

1шт.

38

NSS

NOT SOLD SEPARAT

Elbow, Incl in 37

1шт.

39

47657734

PIPE

from Diverter to EP

1шт.

40

5179004

HYD CONNECTOR,M8 x 1.5 x 36mm L

1шт.

41

87667800

SEALING WASHER,M8

4шт.

42

47657376

PIPE

Diverter Discharge

1шт.

43

47633638

HYDRAULIC MANIFOLD

Higher

1шт.

44

47633634

HYDRAULIC MANIFOLD

Lower

1шт.

45

47129474

HEX SOC SCREW,M6 x 35mm

8шт.
