Запчасти Case IH FARMALL 110CL (35.204.580) - VAR - 759025 - 3 REMOTE CONTROL VALVES, ELECTRO-HYDRAULIC, MOUNTING, CAB (35) - HYDRAULIC SYSTEMS

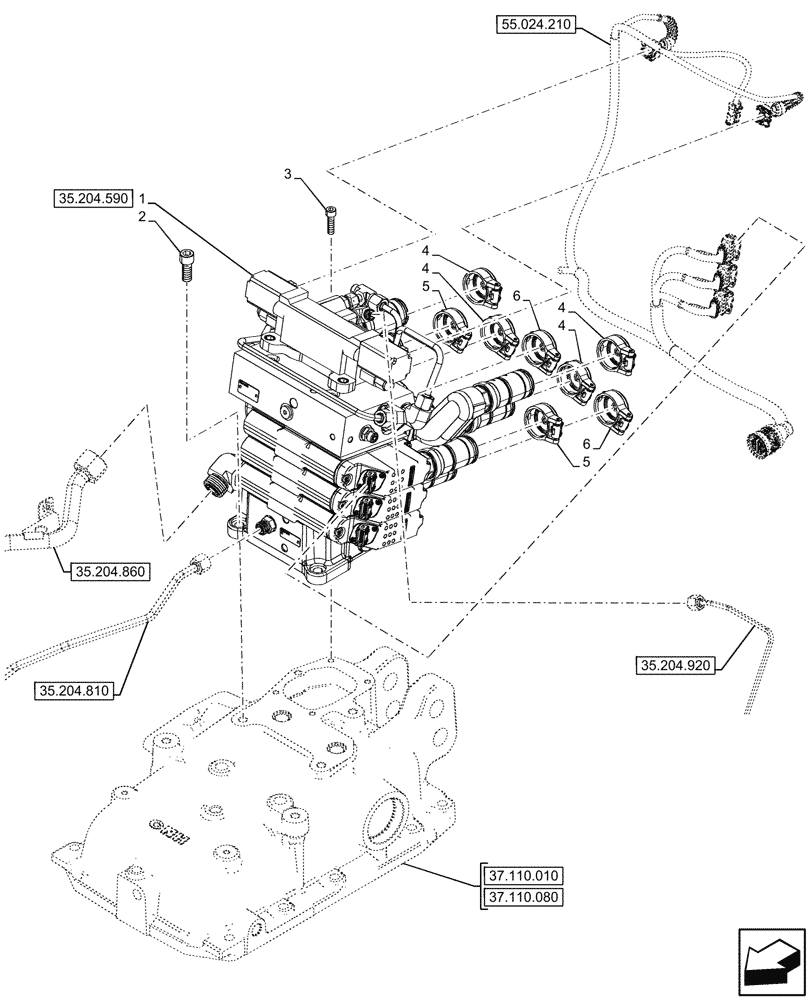

Схема запчастей Case IH FARMALL 110CL - (35.204.580) - VAR - 759025 - 3 REMOTE CONTROL VALVES, ELECTRO-HYDRAULIC, MOUNTING, CAB (35) - HYDRAULIC SYSTEMS
35.204.920
1
4
4
5
6
5
3
4
4
2
6
37.110.010
35.204.590
37.110.080
35.204.810
55.024.210
35.204.860

Артикул

Название

Примечание

Количество

1

47910002

DISTRIBUTOR

ASSY, Electro Hydraulic Superflow

1шт.

2

14331124

SCREW,M12 x 1.25 x 30mm, Cl 8.8, Full DAC

M12 x 1.25 x 30mm, Cl 8.8, Full DAC

2шт.

3

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

4

47132128

DUST CAP,Brown

4шт.

5

47132127

DUST CAP,Blue

2шт.

6

47132126

DUST CAP,Green

2шт.

Выбрано товаров: 6
