(35.204.380) - VAR - 759023, 759024 - 3 REMOTE CONTROL VALVES, CONTROL LEVER, CAB

Запчасти Case IH FARMALL 110CL (35.204.380) - VAR - 759023, 759024 - 3 REMOTE CONTROL VALVES, CONTROL LEVER, CAB (35) - HYDRAULIC SYSTEMS

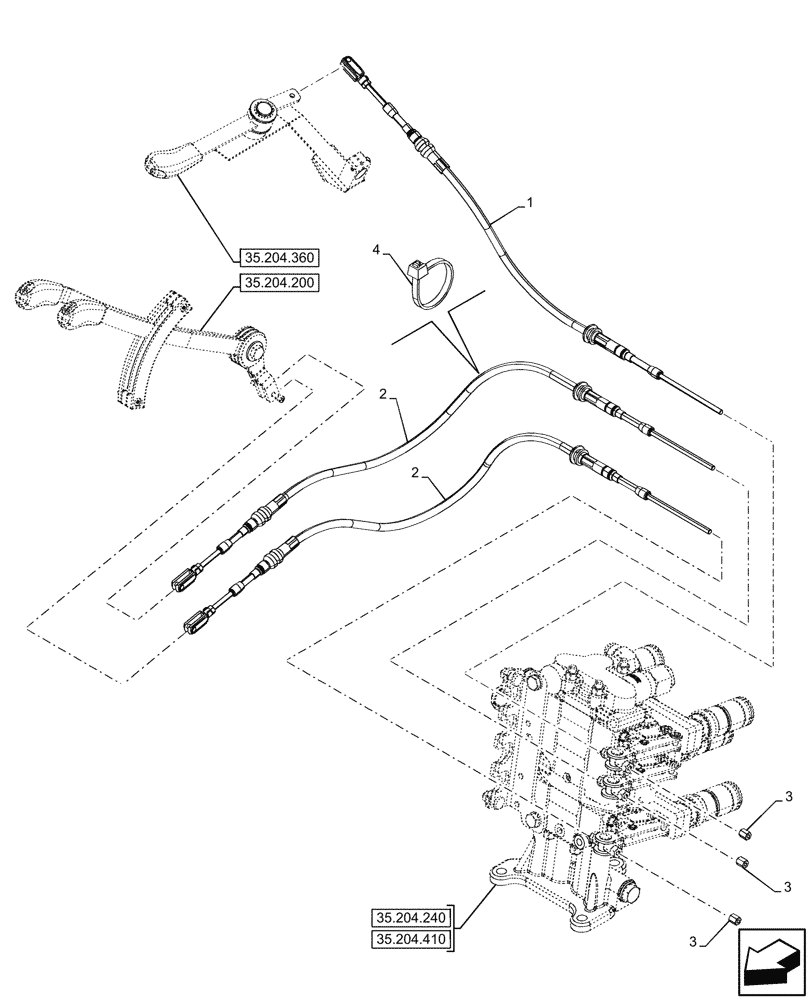

Схема запчастей Case IH FARMALL 110CL - (35.204.380) - VAR - 759023, 759024 - 3 REMOTE CONTROL VALVES, CONTROL LEVER, CAB (35) - HYDRAULIC SYSTEMS
35.204.240
3
2
1
3
2
4
3
35.204.410
35.204.200
35.204.360
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48047678

REMOTE CONTROL

1шт.

2

47931833

REMOTE CONTROL

2шт.

3

82012528

NUT,Hex, M6 x 1

PTO Cable Adjust

3шт.

4

14560087

CABLE TIE,103mm, Black

1шт.
