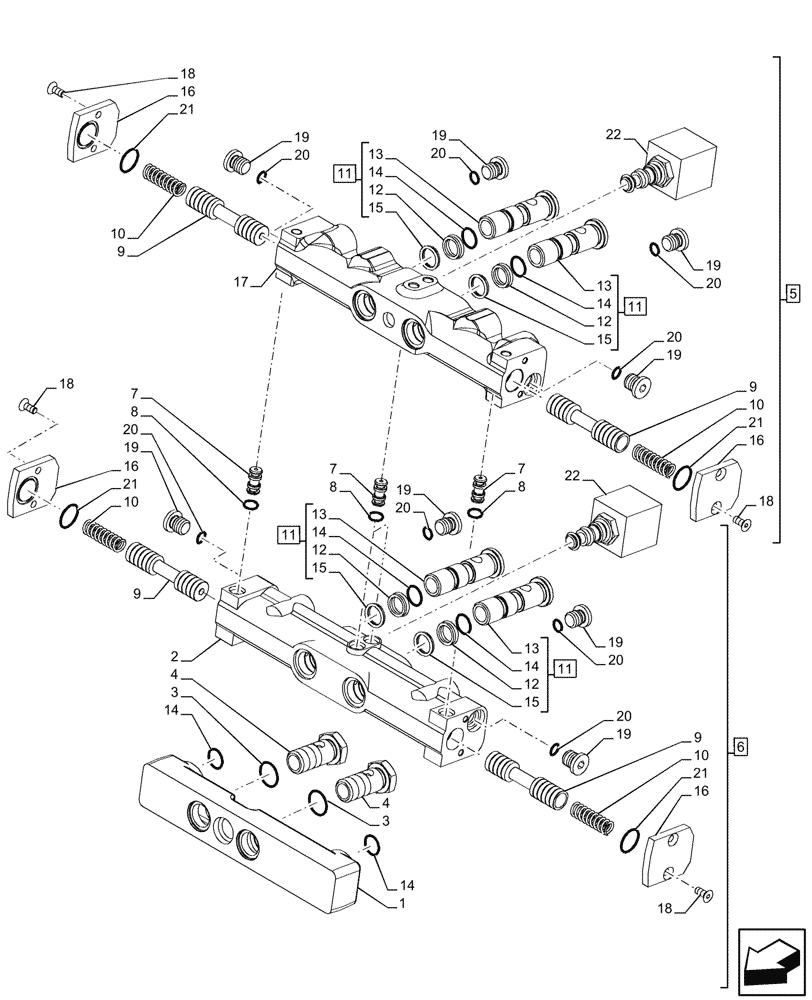

Запчасти Case IH FARMALL 110CL (35.204.350) - VAR - 759024 - 3 REMOTE CONTROL VALVES, W/O DIVERTER, CAB, MANIFOLD (35) - HYDRAULIC SYSTEMS

1

5185533

HYD CONNECTOR

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 6

1шт.

3

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

2шт.

4

5168481

BANJO BOLT,M18 x 1.5 x 38mm

2шт.

5

47131020

BODY

ASSY, Manifold, Incl 9 (Qty 2), 10 (Qty 2), 11 (Qty 2), 12 (Qty 2), 13 (Qty 2), 14 (Qty 2), 15 (Qty 2), 16 (Qty 2), 17, 18 (Qty 4), 19 (Qty 4), 20 (Qty 4), 21 (Qty 2), 22 (Qty 1)

1шт.

6

47131021

BODY

ASSY, Diverter, Incl 2, 9 (Qty 2), 10 (Qty 2), 11 (Qty 2), 12 (Qty 2), 13 (Qty 2), 14 (Qty 2), 15 (Qty 2), 16 (Qty 2), 18 (Qty 4), 19 (Qty 4), 20 (Qty 4), 21 (Qty 2), 22 (Qty 1)

1шт.

7

5190887

HYD CONNECTOR,19.5mm L

4шт.

8

5190853

O-RING,0.103" Thk x 0.206" ID, -107, Cl 5, 70 Duro

8шт.

9

47125557

ROD,16mm OD x 73mm L

4шт.

10

47125559

SPRING,Compression, 11.5mm OD x 37mm L

4шт.

11

47131017

BANJO BOLT,M18 x 1.5 x 67mm

ASSY, Incl 12, 13, 14 (Qty 4), 15

4шт.

12

47126244

GASKET KIT

Gasket

4шт.

13

NSS

NOT SOLD SEPARAT

Bolt, Incl in 11

4шт.

14

14437985

O-RING,15.3mm ID x 2.4mm

6шт.

15

47131201

GASKET KIT

Gasket

4шт.

16

47125558

COVER

4шт.

17

NSS

NOT SOLD SEPARAT

Body, Incl in 5

1шт.

18

14440624

SET SCREW,Hex Soc, M5 x 12mm, Flat Pt

8шт.

19

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

8шт.

20

14437685

O-RING,9.30mm ID x 2.40mm

8шт.

21

86625098

O-RING,0.103" Thk x 0.75" ID, -116, Cl 7, 75 Duro

4шт.

22

5176119

ELECTRO-VALVE,3W - 2p with diode

2шт.
