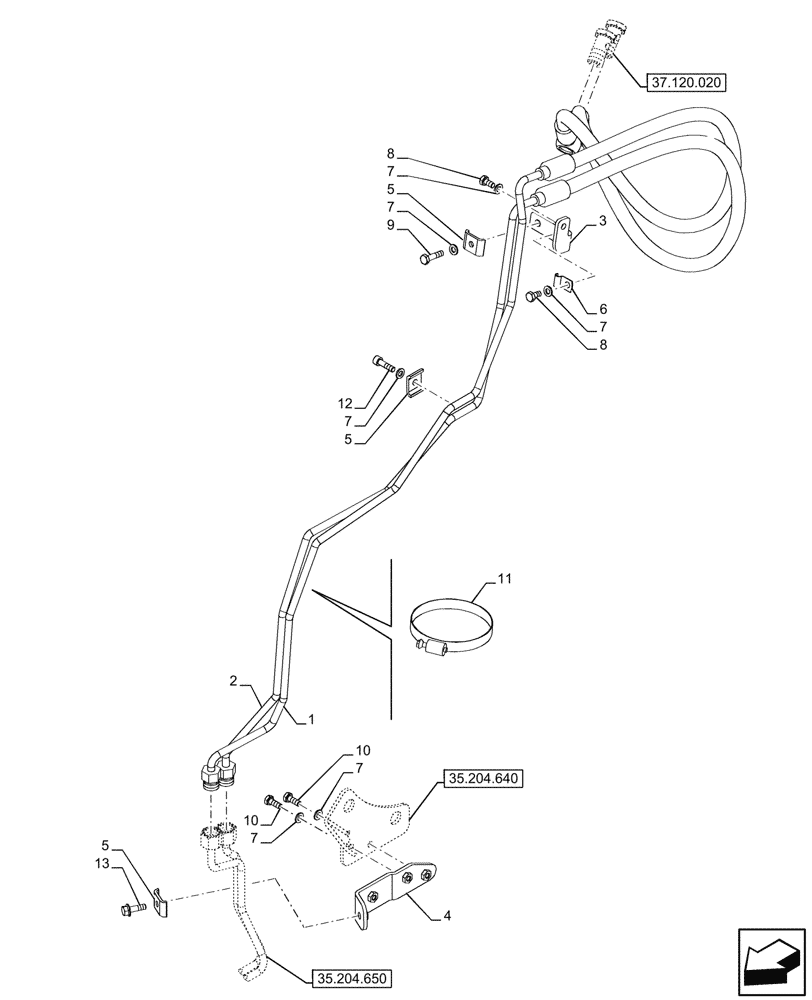

Запчасти Case IH FARMALL 110CL (35.204.210) - VAR - 743535 - MID-MOUNT CONTROL VALVE, LINES, STABILIZER, CAB (35) - HYDRAULIC SYSTEMS

1

47650972

PIPE

Rear Delivery to Right Tie Rod

1шт.

2

47651002

PIPE

Rear Return from Right Tie Rod

1шт.

3

47676581

BRACKET

1шт.

4

47676577

BRACKET

1шт.

5

5161207

RETAINER COLLAR,7mm ID x 23mm L

3шт.

6

10112904

CLAMP,6mm, 7mm Bolt Hole, J Type

1шт.

7

11194379

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD

6шт.

8

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

9

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

10

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

11

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

1шт.

12

14432224

HEX SOC SCREW,M6 x 22mm, Cl 8.8, Full Thd

1шт.

13

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.
