Запчасти Case IH FARMALL 110CL (35.204.160) - VAR - 759025 - REMOTE CONTROL VALVE, COMPONENTS (EDC) (35) - HYDRAULIC SYSTEMS

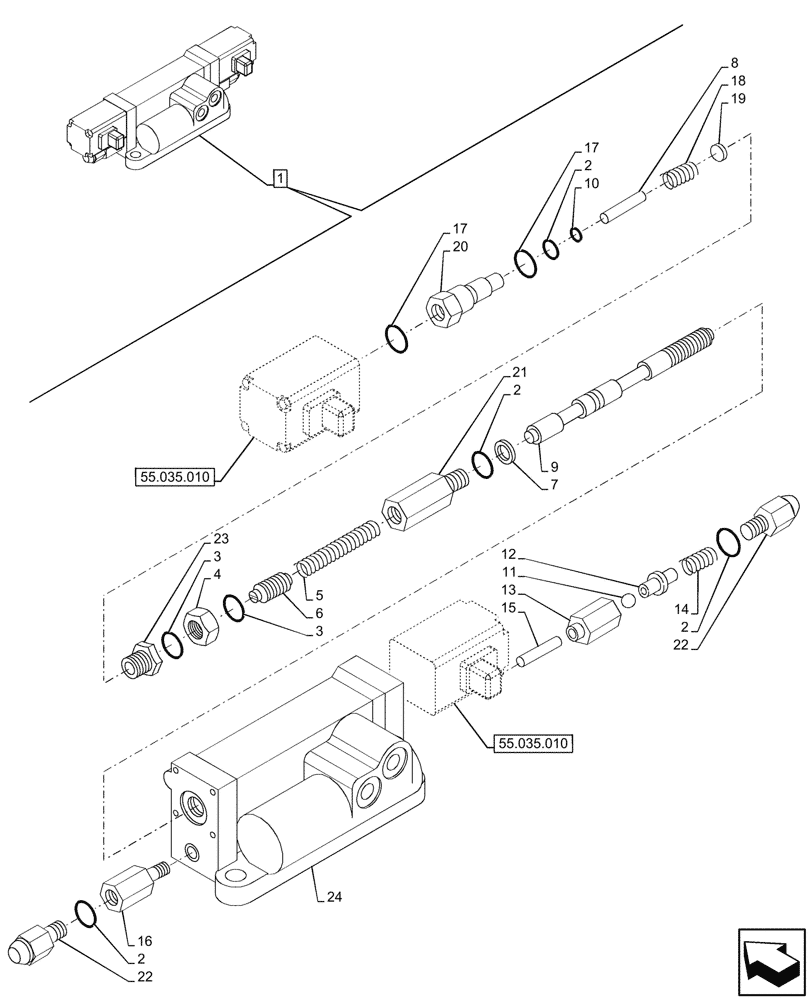

Схема запчастей Case IH FARMALL 110CL - (35.204.160) - VAR - 759025 - REMOTE CONTROL VALVE, COMPONENTS (EDC) (35) - HYDRAULIC SYSTEMS
55.035.010
4
22
8
3
2
16
12
24
2
2
19
10
18
11
3
23
22
15
1
14
17
9
7
2
20
21
17
5
6
13
55.035.010

Артикул

Название

Примечание

Количество

1

82011395

HYDRAULIC VALVE

ASSY, Draft, Incl 2 - 24

1шт.

See also Hydraulic Valve Components in Figure 55.035.010

1шт.

2

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

3

83949142

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

6шт.

4

NSS

NOT SOLD SEPARAT

Special Nut, Incl in 1

2шт.

5

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

2шт.

6

NSS

NOT SOLD SEPARAT

Screw Adjusting, Incl in 1

2шт.

7

NSS

NOT SOLD SEPARAT

Seal Valve Spring, Incl in 1

2шт.

8

NSS

NOT SOLD SEPARAT

Plunger, Incl in 1

2шт.

9

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

8шт.

11

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Guide, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Poppet, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

17

81868473

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

2шт.

18

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

2шт.

19

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

4шт.

20

NSS

NOT SOLD SEPARAT

Body, Incl in 1

2шт.

21

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

22

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

23

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

2шт.

24

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

Выбрано товаров: 25
