(35.204.140) - VAR - 759022 - 2 REMOTE CONTROL VALVES, COMPONENTS (EDC), CAB

Запчасти Case IH FARMALL 110CL (35.204.140) - VAR - 759022 - 2 REMOTE CONTROL VALVES, COMPONENTS (EDC), CAB (35) - HYDRAULIC SYSTEMS

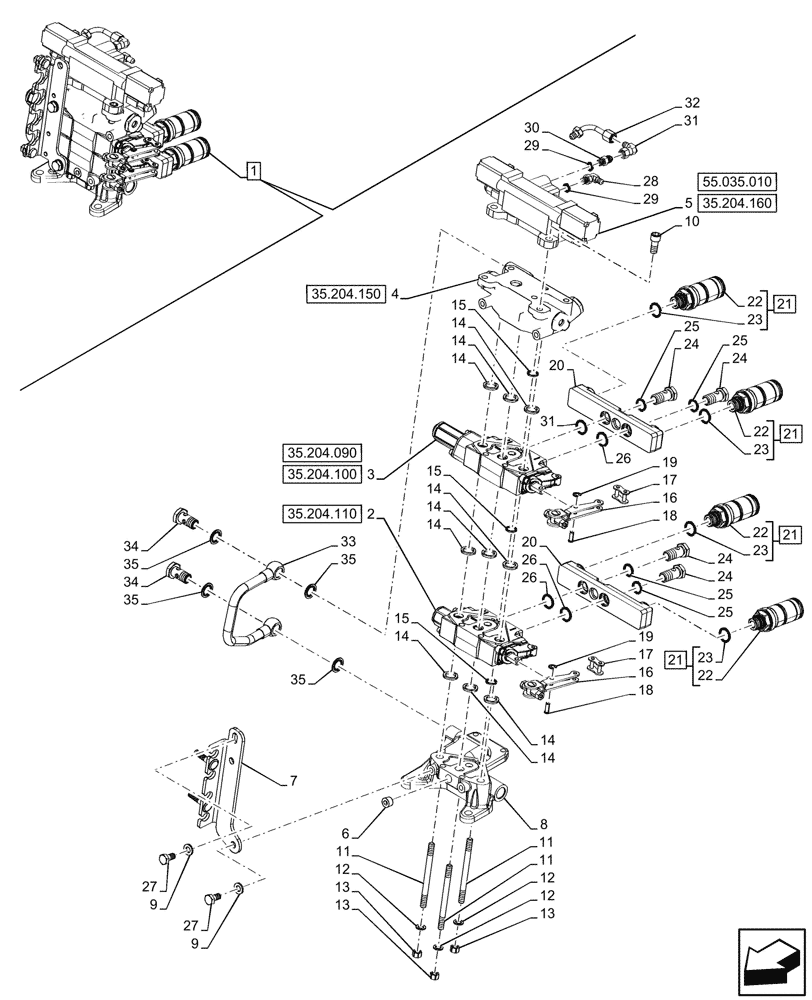

Схема запчастей Case IH FARMALL 110CL - (35.204.140) - VAR - 759022 - 2 REMOTE CONTROL VALVES, COMPONENTS (EDC), CAB (35) - HYDRAULIC SYSTEMS
55.035.010
14
18
14
19
24
26
15
11
15
9
31
26
8
16
32
22
25
20
34
10
35
31
26
14
12
1
24
29
33
18
17
9
30
23
35
20
24
23
14
24
23
6
12
16
4
15
35
34
11
21
21
5
14
25
27
21
14
21
27
3
14
25
13
7
25
35
22
12
28
13
29
22
25
2
22
17
19
14
23
13
14
11
35.204.100
35.204.150
35.204.090
35.204.110
35.204.160
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47937645

DISTRIBUTOR

ASSY, 2 Remote EDC, Incl 2 - 35

1шт.

2

47389199

DISTRIBUTOR

ASSY

1шт.

3

47389172

DISTRIBUTOR

ASSY

1шт.

4

87374218

FLANGE

Valve Section, ASSY

1шт.

5

82011395

HYDRAULIC VALVE

Draft, ASSY

1шт.

6

10269601

PLUG,M16 x 1.5

1шт.

7

47932669

BRACKET

1шт.

8

5176480

FLANGE

1шт.

9

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

10

81864028

HEX SOC SCREW,7/16" - 14 x 1", Gr 8

4шт.

11

5150104

STUD,3/8" - 24 x 5"

3шт.

12

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

13

5116857

NUT,3/8" - 24

3шт.

14

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

9шт.

15

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

3шт.

16

47680228

CONTROL LEVER

2шт.

17

5116896

LINK,19.05mm Pitch

2шт.

18

5172456

PIN,6mm OD x 20mm L

2шт.

19

11087776

CIRCLIP,Ext., M6, BLO

2шт.

20

5185533

HYD CONNECTOR

2шт.

21

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

ASSY, Incl 22 (Qty 1), 23 (Qty 1)

4шт.

22

NSS

NOT SOLD SEPARAT

Coupling, Incl in 21

4шт.

23

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

24

5168481

BANJO BOLT,M18 x 1.5 x 38mm

4шт.

25

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

26

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

4шт.

27

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

28

83934423

90 ELBOW,7/16"-20, 37° x 7/16"-20, O-Ring

1шт.

29

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

30

82002503

HYD CONNECTOR,1/2-20 UNF-2A, 7/16-20 UNF-2A, 31.2mm L

1шт.

31

86513593

90 ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

1шт.

32

47131635

RIGID TUBE

1шт.

33

47937958

PIPE

1шт.

34

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

35

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.
