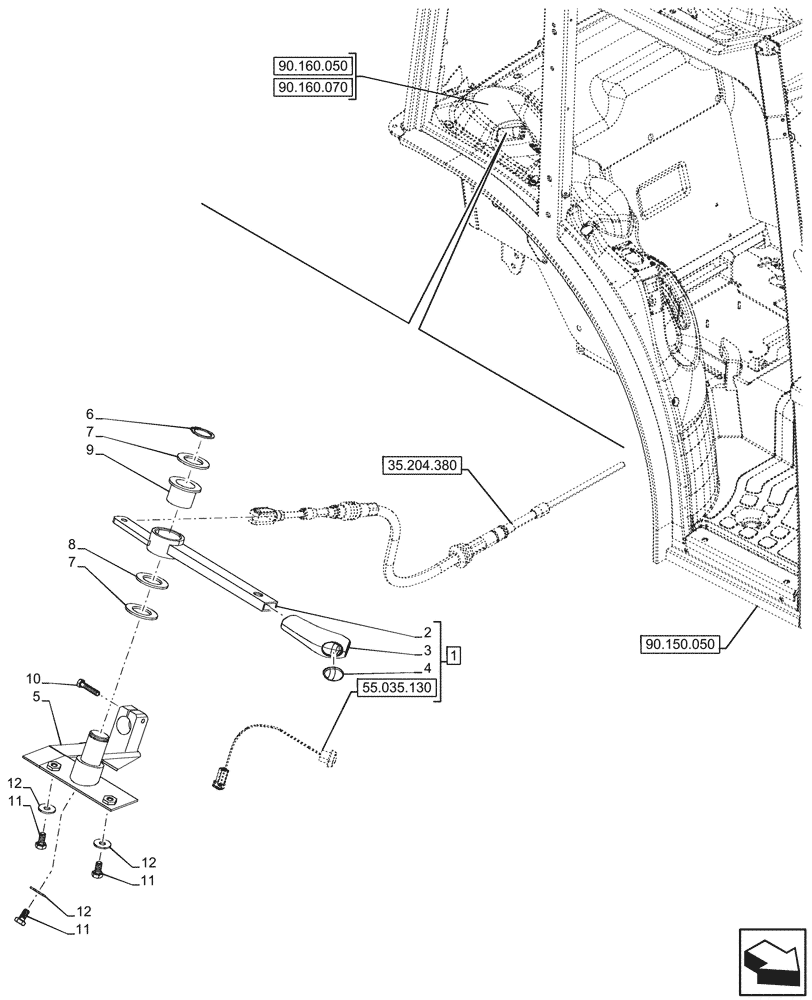

Запчасти Case IH FARMALL 110CL (35.204.035) - VAR - 759024 - 3 REMOTE CONTROL VALVES, W/ DIVERTER, CAB (35) - HYDRAULIC SYSTEMS

1

47964588

LEVER

ASSY, Incl 2 - 4

1шт.

See also Lever Componets in Figure 55.035.130

1шт.

2

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.

3

84121634

KNOB

1шт.

4

87698516

DATA PLAQUE

Ginger

1шт.

5

5180248

SUPPORT

1шт.

6

11066976

SNAP RING,M21, Ext

1шт.

7

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

2шт.

8

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

1шт.

9

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

1шт.

10

10978221

BOLT,Hex, M5 x 25mm, Cl 8.8, Full Thd

1шт.

11

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

3шт.

12

11194774

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

3шт.
