Запчасти Case IH FARMALL 110CL (35.204.025) - VAR - 759023 - 3 REMOTE CONTROL VALVES, W/O DIVERTER, CAB (35) - HYDRAULIC SYSTEMS

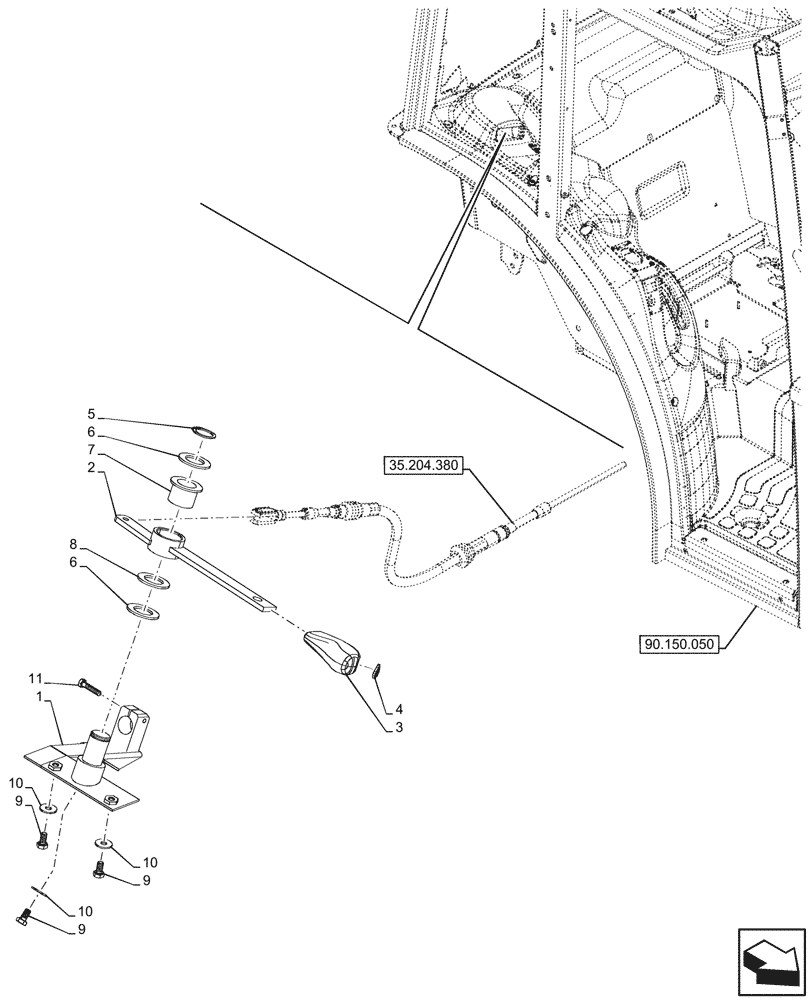

Схема запчастей Case IH FARMALL 110CL - (35.204.025) - VAR - 759023 - 3 REMOTE CONTROL VALVES, W/O DIVERTER, CAB (35) - HYDRAULIC SYSTEMS
90.150.050
4
6
8
9
10
5
6
3
9
9
10
10
2
35.204.380
7
1
11

Артикул

Название

Примечание

Количество

1

5180248

SUPPORT

3rd Hydraulic Remote Control Lever

1шт.

2

5180252

LEVER

3rd Command

1шт.

3

47381094

KNOB,Black

1шт.

4

87698516

DATA PLAQUE

For Ginger Remote

1шт.

5

11066976

SNAP RING,M21, Ext

1шт.

6

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

2шт.

7

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

1шт.

8

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

1шт.

9

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

3шт.

10

11194774

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

11

10978221

BOLT,Hex, M5 x 25mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 11
