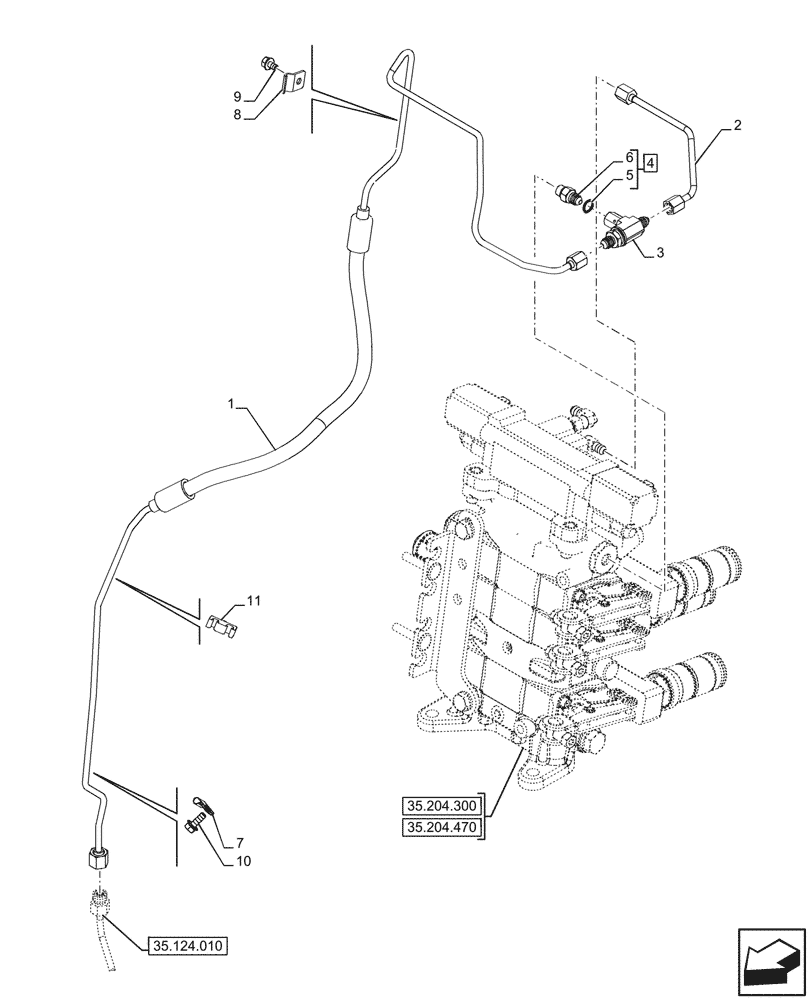

Запчасти Case IH FARMALL 110CL (35.124.020) - VAR - 743536 - 3 REMOTE CONTROL VALVES, LINE, CAB (35) - HYDRAULIC SYSTEMS

1

48016948

PIPE

from Control Valve to 3 Remote Control Valves

1шт.

2

87731818

RIGID TUBE

Load Sensing Pipe

1шт.

3

87727683

HYD CONNECTOR,M12 x 1.5 x 65mm L

1шт.

4

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

1шт.

5

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

7

10418101

RETAINER COLLAR,6mm, Coat, P Type

1шт.

8

84474589

BRACKET

1шт.

9

87015907

BOLT,M6 x 10mm, Full Thd, 8.8 PHC

1шт.

10

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

1шт.

11

14575480

CLIP

1шт.
