(35.124.010) - VAR - 743536 - 3 REMOTE CONTROL VALVES, LINE, CAB

Запчасти Case IH FARMALL 110CL (35.124.010) - VAR - 743536 - 3 REMOTE CONTROL VALVES, LINE, CAB (35) - HYDRAULIC SYSTEMS

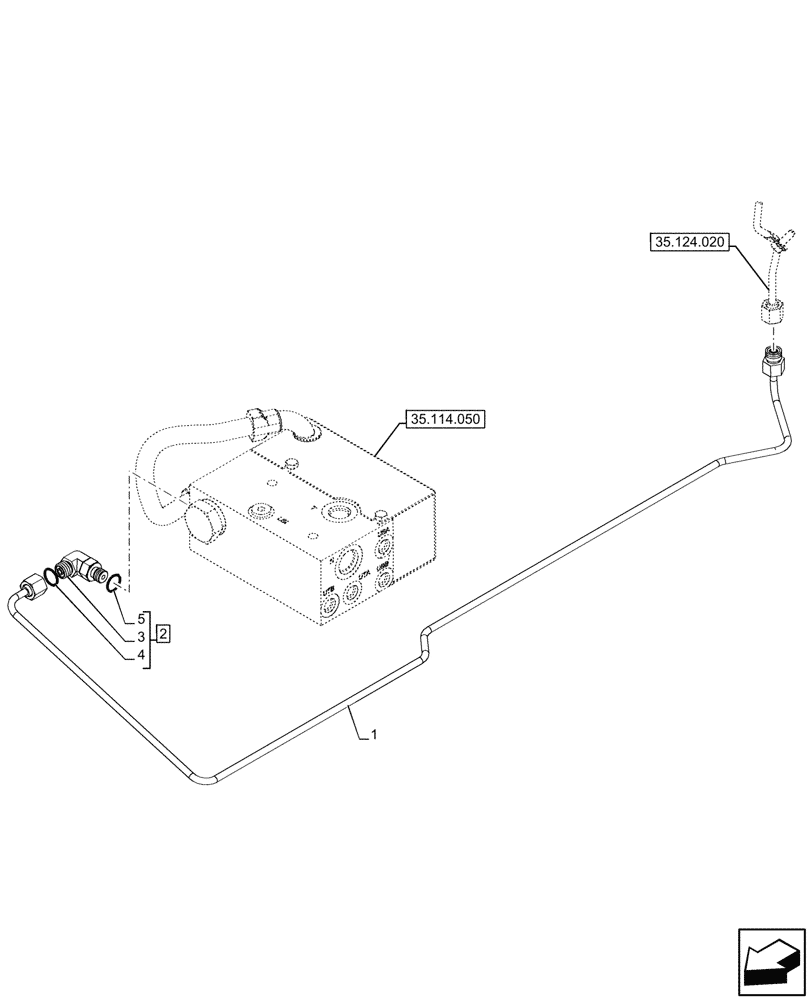

Схема запчастей Case IH FARMALL 110CL - (35.124.010) - VAR - 743536 - 3 REMOTE CONTROL VALVES, LINE, CAB (35) - HYDRAULIC SYSTEMS
35.114.050
3
4
1
5
2
35.124.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48001869

PIPE

from Control Valve to 3 Remote Control Valves

1шт.

2

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 2

1шт.

4

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.
